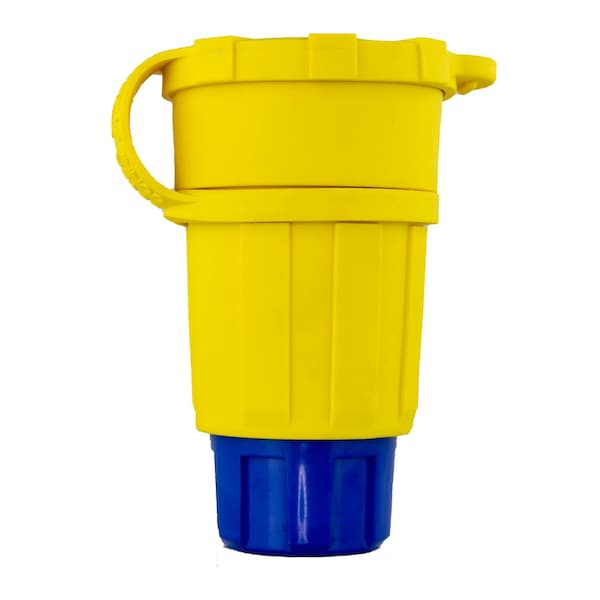

Connector Non-Nema, Perma-Tite Extreme G
| Item | Connector Non-Nema,Perma-Tite Extreme G |
|---|---|
| Amps | 30 |
| Voltage | 120/208V |
| NEMA Configuration | Non-NEMA |
| Color | Yellow |
| Poles / Wires | 4P/4W |
| Environmental Rating | Watertight |
| Device Type | Connector |
| Blade Style | Locking |
| NSF | NSF/ANSI/3-A 14159-1 |
| Phase | 3 |
| Sub Brand / Trademark | Perma-Tite |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Package Quantity | 1 |
