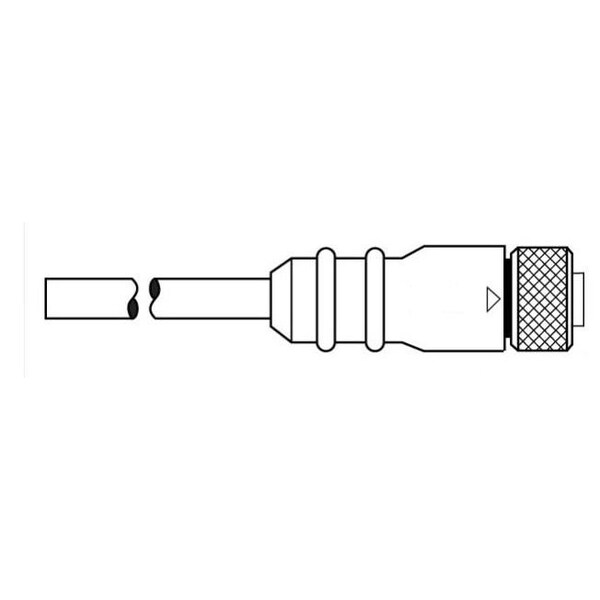

MICR-SYNC DL KEY SGL END F STR 3P 6FT PV
| Item | MICR-SYNC DL KEY SGL END F STR 3P 6FT PV |
|---|---|
| Color | Yellow |
| Connector Type | Micro |
| # of Keyways | Dual |
| Cable Length (ft) | 6 |
| Wiring Code | 1 = Green, 2 = Red/Black, 3 = Red/White |
| Contact Material | Brass Plated, Gold, over Nickel |
| Over molded Body Material | PVC |
| Coupling Nut Material | Anodized, Machined Aluminum |
| Environmental Rating | IP68, NEMA 6P |
| Cable Type | 22 AWG 300VAC STOW YELLOW CABLE |
| UR | UR Recognized Component to ANSI/UL 2238, File E195472 |
| Configuration Style | FS - Female Straight |
| Contact Carrier Material | Nitrile Rubber |
| Load Capacity (Amps) / Volts | 4A, 300VAC |
| # of Poles | 3 |
| Sub Brand / Trademark | Perma-Sync / Micro-Sync |
| cUR | cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472 |
| Contact Sleeve Material | Zytel ST801 |
| Package Quantity | 1 |
