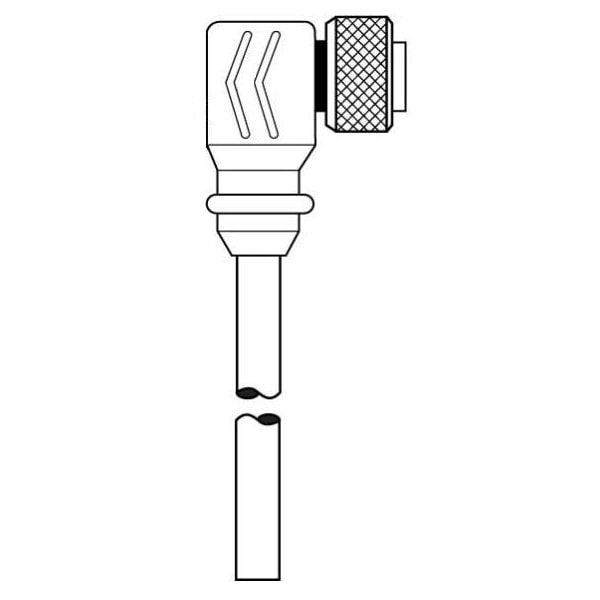

MICR-SYNC SGL KEY SGL END F 90 5P 4M PVC
| Item | MICR-SYNC SGL KEY SGL END F 90 5P 4M PVC |
|---|---|
| Color | Yellow |
| Connector Type | Micro |
| Cable Length (ft) | 13.1 |
| # of Keyways | Single |
| Over molded Body Material | PVC |
| Environmental Rating | IP68, NEMA 6P |
| Contact Sleeve Material | Zytel ST801 |
| Configuration Style | F9 - Female 90 Degree |
| Sub Brand / Trademark | Perma-Sync / Micro-Sync |
| Coupling Nut Material | Anodized, Machined Aluminum |
| Cable Type | 22 AWG 300VAC STOW YELLOW CABLE |
| Contact Material | Brass Plated, Gold, over Nickel |
| cUR | cUR Recognized Component to CSA-C22.2 No. 182.3, File E195472 |
| Load Capacity (Amps) / Volts | 4A, 300VAC |
| # of Poles | 5 |
| UR | UR Recognized Component to ANSI/UL 2238, File E195472 |
| Contact Carrier Material | Nitrile Rubber |
| Wiring Code | 1 = Brown, 2 = White, 3 = Blue, 4 = Black, 5 = Grey |
| Package Quantity | 1 |
