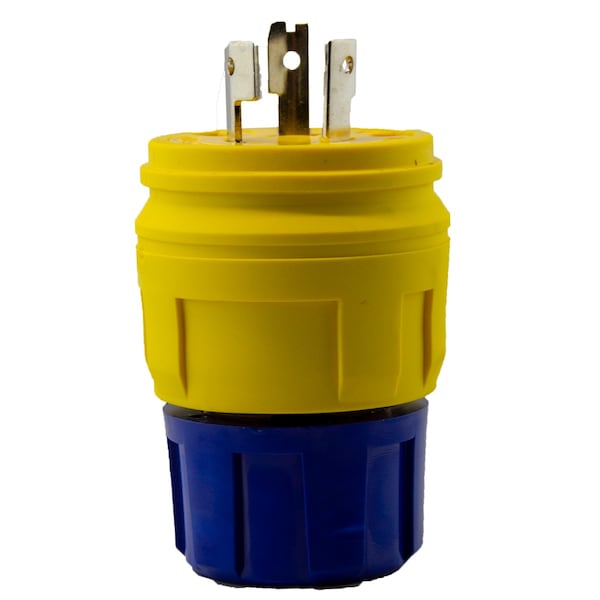

Plug Nema L5-20, Perma-Tite Extreme Grad
| Phase | 1 |
|---|---|
| Item | Plug Nema L5-20,Perma-Tite Extreme Grad |
| Color | Yellow |
| NEMA Configuration | NEMA L5-20 |
| Amps | 20 |
| Voltage | 125V |
| Case Qty | 45 |
| Environmental Rating | Watertight |
| NSF | NSF/ANSI/3-A 14159-1 |
| Sub Brand / Trademark | Perma-Tite |
| Poles / Wires | 2P/3W |
| UL | UL Listed to ANSI/UL 498, File E17740 |
| Device Type | Plug |
| CSA | CSA Certified to CSA C22.2 No.42, File 31943 |
| Blade Style | Locking |
| cETL | cETL Listed to CSA C22.2 No 42 |
| ETL | ETL Listed to ANSI/UL 498 |
| Ideal Application | Any environment that requires a watertight seal of a plug and connector to prevent water ingress. Applications range from a construction site to an entertainment venue and a drop down connector in a food processing plant during a Washdown procedure. |
| Package Quantity | 1 |
