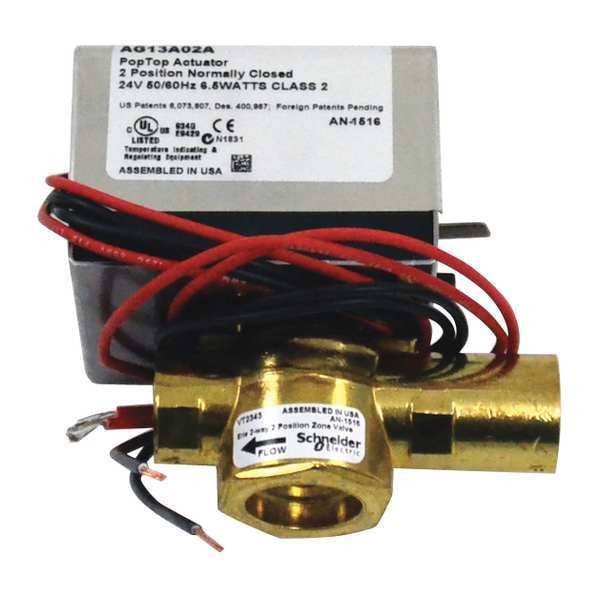

Valve, 2 Way, 3/4 in., with Actuator
| Includes | Motor Assembly |
|---|---|
| Item | Zone Valve |
| Fits Brand | ERIE |
| Type | 3/4 in Inverted Flare |
| Product Type | Valve |
| OEM Replacement Brand | Erie |
| Actuator Voltage | 24 V AC |
| For Media | Water |
| Coefficient of Volume (Cv) | 3.5 |
| Valve Action | Normally Closed |
| Body Pattern | Two-Way |
| Electrical Lead Length | 18 in |
| Includes Electrical Leads | Electrical Leads Included |
| Port Connection Size | 3/4 in |
| Includes Actuator | Actuator Included |
| Actuator Return Action | Spring Return |
| Close-Off Pressure | 25 psi |
| Application | Chilled/Hot Water Control |
| Port Connection Type | Flare |
| Spring Action | Spring Return |
| Fluid Temperature - Maximum | 200 Degrees F |
| Actuator Control Signal | On/Off |
| Standards | UL Listed |
| Body Material | Brass |
| Frequency | 50/60 Hz |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
