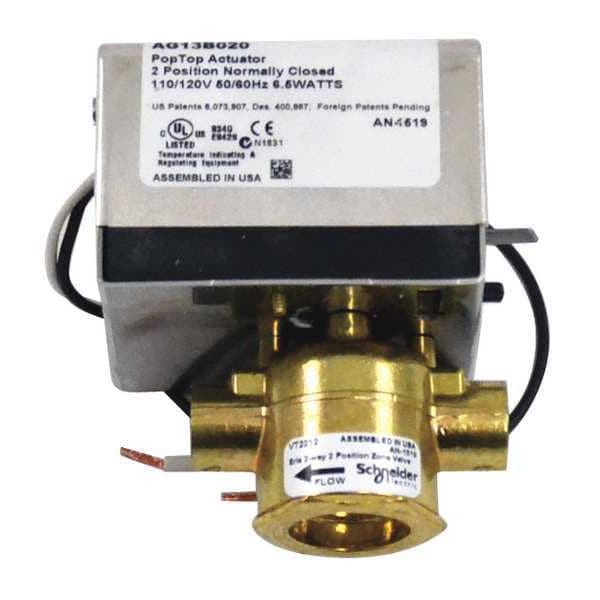

Valve Body, 2 Way, 1/2 in., with Actuator
| Fits Brand | ERIE |
|---|---|
| Includes | Motor Assembly |
| Item | Zone Valve |
| Product Type | Valve |
| OEM Replacement Brand | Erie |
| Valve Action | Normally Closed |
| Application | Chilled/Hot Water Control |
| For Media | Water |
| Fluid Temperature - Minimum | 32 Degrees F |
| Port Connection Type | Sweat |
| Actuator Control Signal | On/Off |
| Includes Actuator | Actuator Included |
| Includes Electrical Leads | Electrical Leads Included |
| Fluid Temperature - Maximum | 200 Degrees F |
| Standards | UL Listed |
| Port Connection Size | 1/2 in |
| Spring Action | Spring Return |
| Actuator Return Action | Spring Return |
| Frequency | 50/60 Hz |
| Body Material | Brass |
| Contact Form | SPDT |
| Coefficient of Volume (Cv) | 2.5 |
| Body Pattern | Two-Way |
| Close-Off Pressure | 40 psi |
| Stem Material | Brass |
| Paddle Material | Buna-N |
| Actuator Voltage | 110 V AC |
| Electrical Lead Length | 18 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
