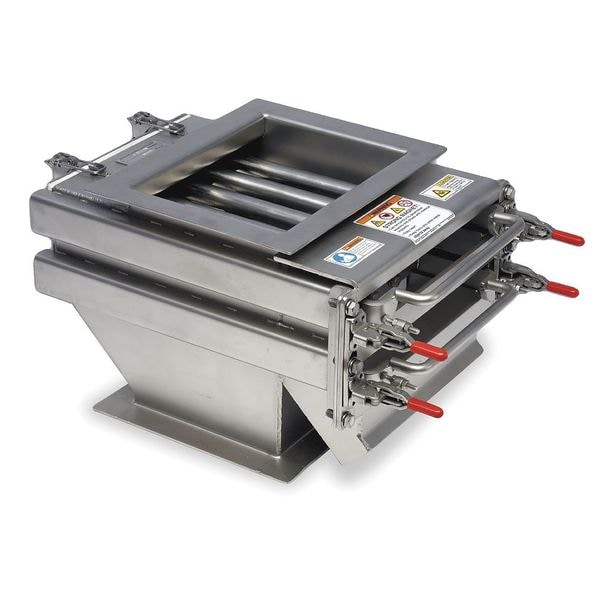

Grate In Housing, Rare Earth, 8 x10 1/2
| Magnetic Separator Type | Rectangular Grate Magnet with Housing |
|---|---|
| Primary Magnet Material | Rare Earth |
| Maximum Magnetic Pull Strength | 80 oz |
| Magnetic Intensity | 10,700 G |
| Grate Shape | Rectangle |
| Overall Length | 8 in |
| Overall Width | 10-1/2 in |
| Overall Height | 11 1/4 in |
| Item | Grate Magnet with Housing |
| For Free Flowing Material Type | Dry Granular, Dry Powder |
| Inlet/Outlet Width (In.) | 8 |
| Temp. Range (F) | 0 to 150 |
| Width (In.) | 10-1/2 |
| Intensity Range (Gauss) | 10,700 |
| Length (In.) | 8 |
| Cutout Height (In.) | 11-1/4 |
| Max. Pull on Contact | 80 Ounces At The Surface With 1/4" Diameter Steel Test Ball |
| Free Flowing Material | Powder or Granular |
| Max. Operating Temp. | 150 deg F |
| Magnet Housing Material | Stainless Steel |
| Flange Width (In.) | 1-1/2 |
| Housing Material | 304 Stainless Steel |
| Frame Material | Stainless Steel |
| Height (In.) | 11-1/4 |
| Magnet Type | Rare Earth |
| Package Quantity | 1 |
| Inlet/Outlet Length (In.) | 10-1/2 |
| Country of Origin (subject to change) | China |
