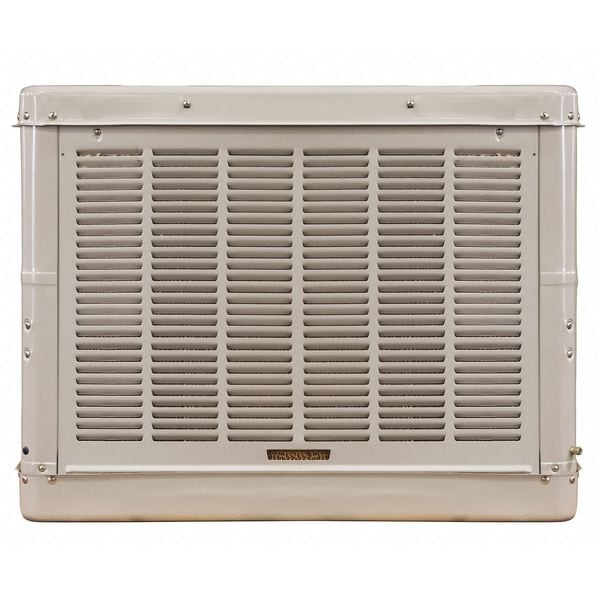

Ducted Evaporative Cooler 3,150 to 3,970 cfm, 1800 sq. ft., 11 gal, 3/4 HP, Belt Drive
| Air Flow | 3,150 to 3,970 cfm |
|---|---|
| Material | Steel |
| Item | Ducted Evaporative Cooler |
| Color | Beige |
| Blade Dia. | 16 in |
| Grille Width | 17-1/2 in |
| Pad Thickness | 4 in |
| Speed | 2 |
| Duct Opening Width | 17-3/4 in |
| Includes | Belt, Motor, Pulley, Pump |
| Height | 30-1/2 in |
| Water Capacity | 11 gal |
| Water Connection | 1/4 in |
| Finish | Powder Coated |
| Pump Voltage | 115V AC |
| Discharge | Down |
| Evaporative Cooler Voltage | 115V AC |
| Drive | With |
| Duct Opening Length | 17-3/4 in |
| Width | 41-1/4 in |
| Fill Type | Water Connection Required |
| Motor HP | 0.75 |
| Phase | Single |
| Grille Height | 17-1/2 in |
| Drive Type | Belt Drive |
| Operating Weight | 300 lb |
| Evaporative Cooler Item | Ducted Evaporative Cooler with Motor |
| Amps | 10.5/4.5 A |
| Evaporative Cooler Cooling Capacity | 1,800 sq ft |
| Media | Rigid |
| Depth | 41-1/4 in |
| Number of Inlets for Outside Air | Multiple Inlet |
| Drive Package With Motor | Factory Installed |
| Number of Speeds | 2 |
| Duty Rating | Residential Grade |
| HP | 3/4 HP |
| Coverage Area - Maximum | 1,800 sq ft |
| Airflow | 3,970 cfm |
| Coverage Area - Minimum | 910 sq ft |
| Connection Type | NPS |
| Includes Drive Package | Drive Package Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
