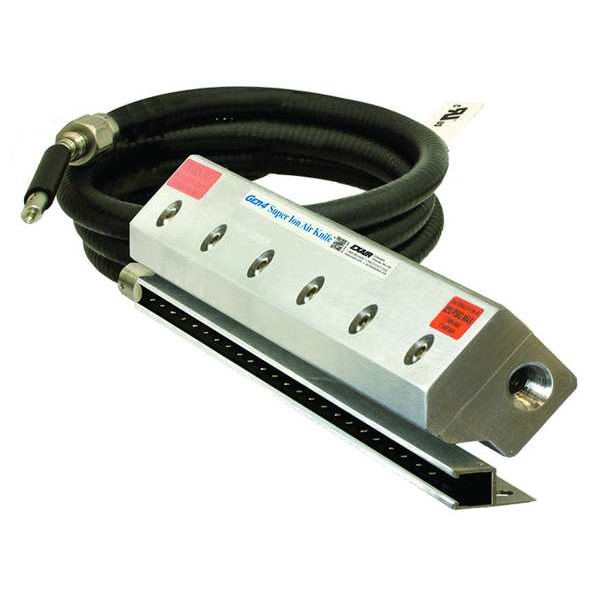

Super Ion Air Knife, GEN4, 36"
| (F)NPT Inlet | 1/4 in |
|---|---|
| Item | Air Knife |
| Air Slot Width (In.) | 36 |
| Air Consumption (SCFM) | 104.4 scfm |
| Material | Aluminum |
| Overall Depth (In.) | 2.27 in |
| Max. Temp. (F) | 165 Degrees F |
| Air Slot Gap (In.) | 0.002 in |
| Number of Inlets | 4 |
| Type | High Efficiency, Industrial |
| Max. dBA | 69 at 80 PSI |
| Overall Width (In.) | 38 |
| Overall Thickness (In.) | 1.85 in |
| Working Pressure | 10 to 250 PSI |
| Series | Series Gen4 |
| Standards | CE, Conflict Mineral Free, cRUus, cULus Listed, EU, RoHS Compliant, UL Listed |
| Inlet Size | 1/4 in |
| Body Material | Aluminum |
| Overall Length | 36 in |
| Overall Height | 1-7/8 in |
| Number of Air Inlets | 4 |
| Maximum Operating Temperature | 165 Degrees F |
| Product Type | Air Knife Only |
| Includes Shims | Not Applicable |
| Air Slot Height | 0.002 in |
| System of Measurement | Inch |
| Includes Filter Separator | Not Applicable |
| Air Slot Width | 36 in |
| Air Inlet Type | NPT |
| Inlet Gender | Female |
| Includes Pressure Regulator | Not Applicable |
| Mounting Stud Thread Size | 1/4"-20 |
| Overall Depth | 2 1/4 in |
| Maximum Operating Pressure | 250 psi |
| Minimum Operating Pressure | 10 psi |
| Air Consumption per inch | 104.4 scfm |
| Mounting Hole Diameter | 1/4 in |
| For Fluid Type | Compressed Air |
| Package Quantity | 1 |
