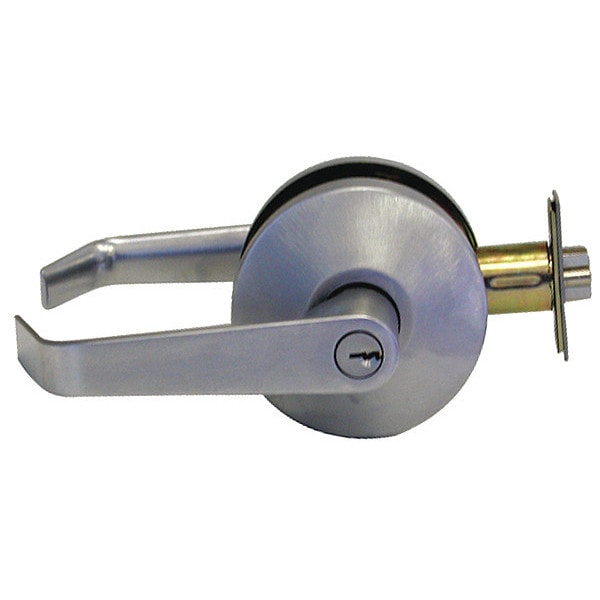

B Series Cylindrical Entry Lock Dane Lever US26D
| Item | Door Lockset |
|---|---|
| Features | 10 yr Warranty, Screws Coated with Thread Sealant |
| Standards | ANSI/BHMA A156.2 |
| Number of Pins | 6 |
| Strike Plate Width | 1-1/4 in |
| Lockset Function | Entrance |
| Cylinder Core Type | Conventional Core Cylinder |
| Backset | 2 3/4 in |
| Strike Plate Height | 4-7/8 in |
| Door Thickness - Maximum | 2 in |
| Lockset Handle Type | Lever |
| Fire Rating | 3 hr |
| ANSI Grade | 2 |
| Performance Grade | 2 |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Style | Dane |
| Strike Type | Lip |
| Keyway Type | Keyway G |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Mortise/Cylindrical | Cylindrical |
| ADA Compliant | Yes |
| Locking/Unlocking Access - Inside | Push Button |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
