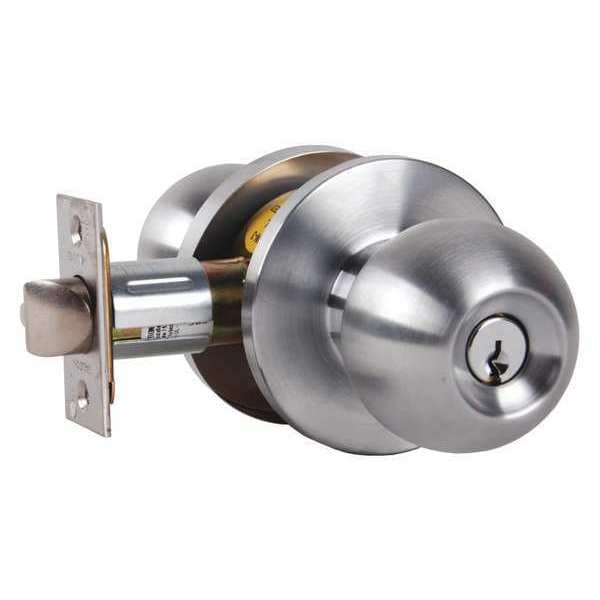

Knob Lockset, Mechanical, Entrance, Grd. 2
| Lockset Finish | Satin Chrome |
|---|---|
| Lockset Grade | 2 |
| Lockset Handle Type | Knob |
| Material | Brass Steel Zinc |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Required Door Thickness | 1-3/8 in and 1-3/4 in |
| Keyway Type | Keyway G |
| Key Type | Keyed Different |
| Series | W |
| Key Material | Nickel Silver |
| Electrical/Mechanical | Mechanical |
| Backset | 2-3/4 in |
| Lockset Performance Strength | Medium Duty |
| Ligature Resistant | No |
| Pins | 6 |
| Standards | ANSI/BHMA A156.2 |
| Strike Type | Curved Lip |
| Style | W Hana |
| Location Type | Commercial |
| Item | Door Lockset |
| Knob Material | Brass/Steel/Zinc |
| ADA Compliant | Yes |
| Lockset Fire Rating | 3 hr |
| Includes | (2) Blank/Uncut Keys |
| Number of Keys | 2 |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Features | 10 yr Limited Warranty, Does Not Require Field Disassembly |
| Number of Pins | 6 |
| Keying | Keyed Different |
| Voltage | Not Applicable |
| Cylinder Core Type | Conventional Core Cylinder |
| Performance Grade | 2 |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 1-3/4 in |
| Application | Commercial |
| Lockset Style | Hana |
| Knob/Handle Material | Steel |
| Includes Hardware | Hardware Included |
| Strike Plate Width | 1-1/4 in |
| ANSI Grade | 2 |
| Locking/Unlocking Access - Inside | Keyway |
| Door Thickness - Minimum | 1-3/8 in |
| Mortise/Cylindrical | Cylindrical |
| Lockset Function ANSI Code | F109 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Fire Rating | 3 hr |
| Strike Plate Height | 4-7/8 in |
| Lockset Type | Mechanical |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
