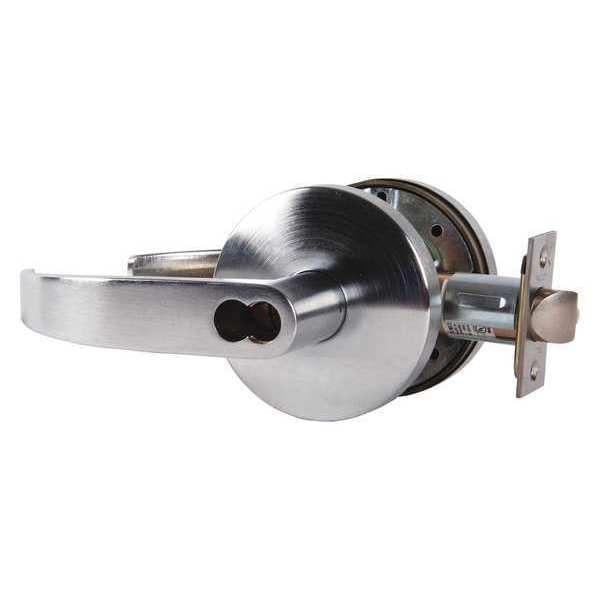

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | W Quantum |
| Required Door Thickness | 1-3/4 in, 1-3/8 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Keyway G |
| Key Type | Not Keyed |
| Ligature Resistant | No |
| Backset | 2-3/4 in |
| Number of Keys | 0 |
| Series | W |
| Standards | ANSI/BHMA A156.2 |
| Location Type | Commercial |
| Mortise/Cylindrical | Cylindrical |
| Strike Type | Curved Lip |
| Lockset Performance Strength | Medium Duty |
| Includes | Hardware |
| ADA Compliant | Yes |
| Lockset Fire Rating | 3 hr |
| Cylinder Core Type | Conventional Core Cylinder |
| Handle Material | Brass, Steel, Zinc |
| Item | Door Lockset |
| Key Material | Not Applicable |
| Features | 10 yr Limited Warranty, Does Not Require Field Disassembly |
| Keying | Unkeyed |
| Grade | 2 |
| Finish | Satin Chrome |
| Fire Rated | 3 hr. |
| Number of Pins | 6 |
| Voltage | Not Applicable |
| Type | Medium Duty |
| Visual Indicator Message | No Message |
| Material | Brass Steel Zinc |
| For Door Thickness | 1-3/8 to 1-3/4" |
| Function | Entry |
| Cylinder | Less SFIC Cylinder |
| Strike | Square Corner |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Knob/Handle Material | Steel |
| Visual Indicator Location | Not Applicable |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Door Thickness - Maximum | 1-3/4 in |
| ANSI Grade | 2 |
| Application | Commercial |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Lockset Function ANSI Code | F109 |
| Latch Bolt/Dead Bolt | Dead Latch |
| Strike Plate Width | 1-1/4 in |
| Includes Hardware | Hardware Included |
| Door Thickness - Minimum | 1-3/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Lockset Type | Mechanical |
| Lockset Style | Quantum |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 2 |
| Locking/Unlocking Access - Outside | Keyway |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
