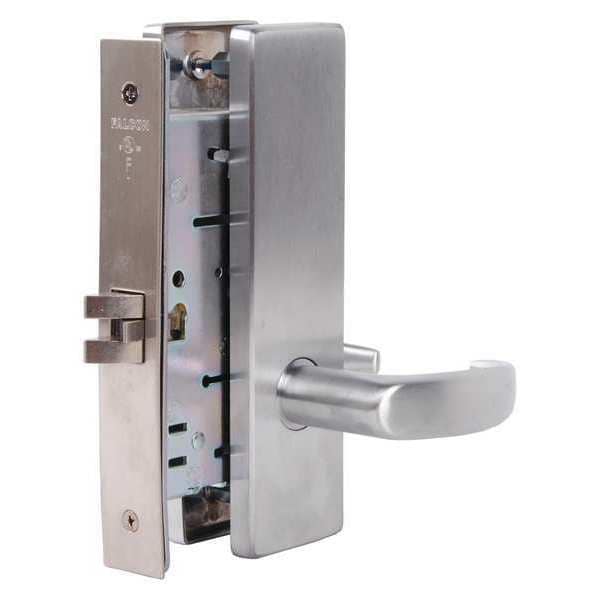

Lever Lockset, Mechanical, Passage, Grd. 1
| Backset | 2 3/4 in |
|---|---|
| Electrical/Mechanical | Mechanical |
| For Use With | various Door Types |
| Includes | Inside Trim, Mounting Screws, Outside Trim, Spindle |
| Key Type | Not Keyed |
| Keyway Type | Keyway G |
| Location Type | Commercial |
| Lockset Function | Passage |
| Lockset Grade | 1 |
| Lockset Handle Type | Lever |
| Mortise/Cylindrical | Mortise |
| Number of Pins | 6 |
| Required Door Thickness | 1-3/4 in to 1-7/8 in |
| Series | MA |
| Style | MA Quantum Napa |
| Finish | Satin Chrome |
| Voltage | Not Applicable |
| Standards | ANSI/BHMA A156.13 |
| Ligature Resistant | No |
| Lockset Finish | Satin Chrome |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Item | Door Lockset |
| Strike Type | ANSI |
| Lockset Fire Rating | Not Rated |
| Number of Keys | 0 |
| ADA Compliant | Yes |
| Mortise / Cylindrical | Mortise |
| Key Material | Not Applicable |
| Grade | 1 |
| Keying | Unkeyed |
| Fire Rated | Not Rated |
| Application | Commercial |
| Strike | Includes |
| Function | Passage |
| Cylinder Core Type | Conventional Core Cylinder |
| Pins | 0 |
| Visual Indicator Message | No Message |
| Handle Type | Lever |
| ANSI Grade | 1 |
| Includes Hardware | Hardware Included |
| Locking/Unlocking Access - Outside | Not Lockable |
| Lockset Type | Mechanical |
| Lockset Function ANSI Code | F01 |
| Strike Plate Width | 1-1/4 in |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Hand Orientation | Right-Handed |
| Lockset Style | Quantum |
| Latch Bolt/Dead Bolt | Latch Bolt, Dead Bolt |
| Strike Plate Height | 4-7/8 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 1-7/8 in |
| Door Thickness - Minimum | 1-3/4 in |
| Visual Indicator Location | Not Applicable |
| Fire Rating | 3 hr |
| Locking/Unlocking Access - Inside | Not Lockable |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
