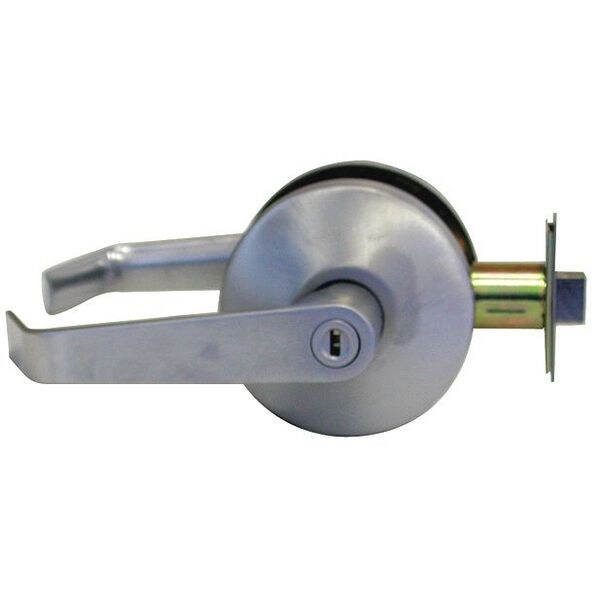

Lever Lockset, Mechanical, Privacy, Grd. 2
| Item | Door Lockset |
|---|---|
| Lockset Function | Privacy |
| Electrical/Mechanical | Mechanical |
| Grade | 2 |
| Finish | Satin Chrome |
| Backset | 2 3/4 in |
| Mortise/Cylindrical | Cylindrical |
| Mortise / Cylindrical | Cylindrical |
| Lockset Performance Strength | Light Duty |
| Ligature Resistant | No |
| Lockset Handle Type | Lever |
| Lockset Grade | 2 |
| Lockset Finish | Satin Chrome |
| ADA Compliant | Yes |
| Style | Dane |
| Number of Pins | 6 |
| Strike Type | Curved Lip |
| Keyway Type | Keyway G |
| Standards | ANSI/BHMA A156.2 |
| Features | 10 yr Warranty, Screws Coated with Thread Sealant |
| Visual Indicator Message | No Message |
| Cylinder Core Type | Conventional Core Cylinder |
| Voltage | Not Applicable |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Style | Dane |
| Locking/Unlocking Access - Inside | Push Button |
| Fire Rating | 3 hr |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Lockset Type | Mechanical |
| Performance Grade | 2 |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 2 in |
| Knob/Handle Material | Zinc |
| Strike Plate Height | 4-7/8 in |
| Hand Orientation | Non-Handed |
| Visual Indicator Location | Not Applicable |
| ANSI Grade | 2 |
| Strike Plate Width | 1-1/4 in |
| Lockset Function ANSI Code | F76 |
| Latch Bolt/Dead Bolt | Spring Latch |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
