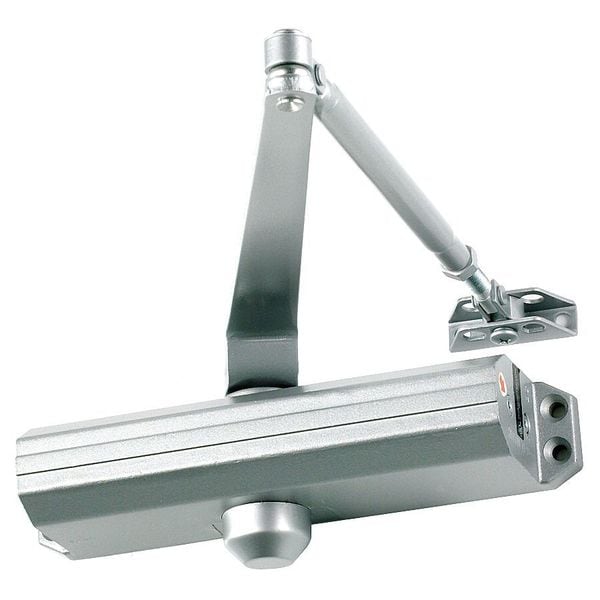

Manual, Hydraulic, SC60 Series Surface Closers, Door Closer, Standard Duty Interior, Aluminum
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Standard Duty |
| Closer Series | SC60 Series Surface Closers |
| Closer Type | Regular Arm |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 3-1/8 in |
| Housing Height | 2-3/4 in |
| Housing Length | 9-3/4 in |
| Interior/Exterior | Interior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Includes | Self Drilling Screws |
| Spring Size | Adjustable 1 to 4 |
| Mounting Hardware | Included |
| Arm Type | Parallel, Regular |
| Projection from Wall | 3-1/8 in |
| ADA Compliant | Yes |
| Max. Door Opening | Up to 180 Degrees |
| Standards | Grade 1; ANSI A117.1; ANSI/BHMA A156.4; UL Listed; UL10C; UBC 7-2 |
| Interior Door Width | Up to 48 in |
| Category Type | Parallel Arm |
| Features | Heat-Treated Steel Pinion and Piston |
| Door Handing | Non-Handed |
| Series | SC60A |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Parrallel Arm |
| Includes Hardware | Hardware Included |
| ANSI/BHMA Finish | Aluminum Painted |
| Interior/Exterior Use | Interior |
| Performance Grade | 2 |
| Door Opening - Maximum | 180 deg |
| Spring Size - Maximum | 5 |
| Length Between Mounting Holes | 9-1/16 in |
| Spring Type | Adjustable |
| UL Fire Rating | UL10C |
| Projection | 3-1/8 in |
| Interior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Spring Size - Minimum | 1 |
| Height Between Mounting Holes | 3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
