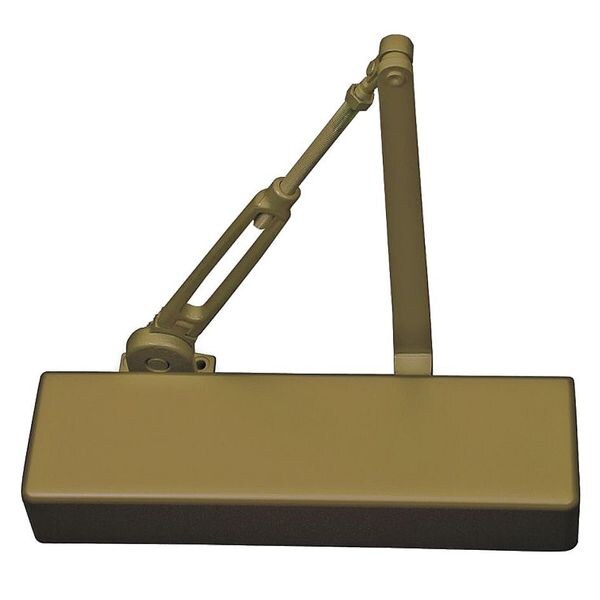

Manual, Hydraulic, SC70 Series Surface Closers, Door Closer, Standard Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Standard Duty |
| Closer Series | SC70 Series Surface Closers |
| Closer Type | Hold Open |
| Color | Dark Bronze |
| Finish | Dark Bronze |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/8 in |
| Housing Height | 3-3/4 in |
| Housing Length | 13-5/8 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Standards | ANSI A117.1, ANSI/BHMA A156.4, UL Listed |
| Exterior Door Width | Up to 36 in |
| Interior Door Width | Up to 48 in |
| ADA Compliant | Yes |
| Projection from Wall | 2-1/8 in |
| Max. Door Opening | Up to 180 Degrees |
| Includes | Cover, Self Drilling Screws |
| Arm Type | Parallel |
| Mounting Hardware | Included |
| Spring Size | Adjustable 1 to 6 |
| Category Type | Parallel Arm |
| Features | 1 1/2 in dia Piston |
| Door Handing | Non-Handed |
| Series | SC70A |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Parrallel Arm |
| Spring Type | Adjustable |
| Performance Grade | 1 |
| Projection | 2-1/8 in |
| UL Fire Rating | UL10C |
| Interior Door Width - Maximum | 48 in |
| ANSI/BHMA Finish | Painted |
| Product Type | Door Closer |
| Door Opening - Maximum | 180 deg |
| Height Between Mounting Holes | 2-3/8 in |
| Interior/Exterior Use | Interior, Exterior |
| Spring Size - Maximum | 6 |
| Length Between Mounting Holes | 6-3/4 in |
| Spring Size - Minimum | 1 |
| Stop Type | Spring |
| Includes Hardware | Hardware Included |
| Exterior Door Width - Maximum | 36 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
