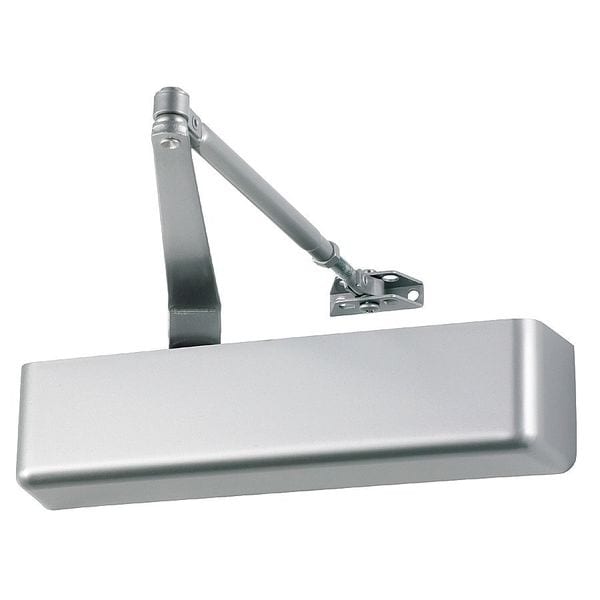

Manual, Hydraulic, SC80 Series Surface Closers, Door Closer, Medium Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Surface |
| Closer Performance | Medium Duty |
| Closer Series | SC80 Series Surface Closers |
| Closer Type | Regular Arm |
| Color | Aluminum |
| Finish | Aluminum |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-1/2 in |
| Housing Length | 13-1/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| ADA Compliant | Yes |
| Mounting Hardware | Included |
| Includes | Cover, Self Drilling Screws |
| Standards | Grade 1; ANSI A117.1; ANSI/BHMA A156.4; UL Listed; UL10C; UBC 7-2 |
| Projection from Wall | 2-1/4 in |
| Max. Door Opening | Up to 180 Degrees |
| Spring Size | Adjustable 1 to 6 |
| Arm Type | Parallel |
| Interior Door Width | Up to 48 in |
| Category Type | Parallel Arm |
| Features | Heat-Treated Pinion and Steel Piston |
| Door Handing | Non-Handed |
| Series | SC80A |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Parrallel Arm |
| Spring Type | Adjustable |
| Door Opening - Minimum | 121 deg |
| Product Type | Door Closer |
| Door Opening - Maximum | 180 deg |
| Projection | 2-1/4 in |
| Interior Door Width - Maximum | 48 in |
| UL Fire Rating | UL10C |
| Includes Hardware | Hardware Included |
| Interior/Exterior Use | Interior, Exterior |
| Spring Size - Maximum | 6 |
| ANSI/BHMA Finish | Aluminum Painted |
| Length Between Mounting Holes | 12-3/4 in |
| Performance Grade | 2 |
| Spring Size - Minimum | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
