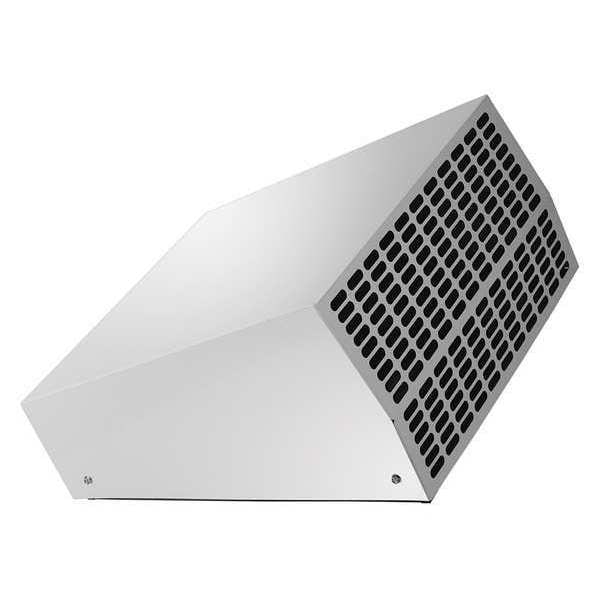

Exhaust Fan, 390 cfm, 120V, 60 Hz
| Type | Exterior Mount |
|---|---|
| Fits Duct Dia. (In.) | 6 |
| CFM @ 0.100-In. SP | 390 |
| Fan Voltage | 120 V AC |
| Housing Height (In.) | 17 |
| Housing Width (In.) | 14-1/4 |
| Housing Depth (In.) | 8 |
| Housing Material | Steel |
| Housing Finish | Powder-Coated |
| CFM @ 0.400-In. SP | 335 |
| Hz | 60 |
| Agency Compliance | UL, AMCA |
| CFM @ 0.200-In. SP | 360 |
| Mounting Location | Wall |
| CFM @ 0.800-In. SP | 1,390,127,011,701,090 |
| Item | Exhaust Fan |
| Max. Inlet Temp. (Deg. F) | 104 |
| Phase | 1 |
| Includes | Speed Control Potentiometer |
| Amps | 0.948 |
| Speed Control | MTP 10 |
| CFM @ 0.600-In. SP | 285 |
| Standards | AMCA, UL |
| Heater | Without Heater |
| Blower Wheel Curve | Backward |
| Duct Diameter | 6 in |
| Motor Insulation | Class B |
| Number of Speeds | Variable |
| Discharge Direction | Vertical, Horizontal |
| Overall Width | 14-1/4 in |
| Maximum Ambient Operating Temperature | 104 deg F |
| Duct Shape | Round |
| Exhaust Airflow @ 0.800 in SP | 244 cfm |
| Overall Height | 17 in |
| Profile Height Family | High |
| Maximum Inlet Temperature | 104 deg F |
| Exhaust Airflow @ 0.200 in SP | 362 cfm |
| Sensor Type | None |
| Profile Width Family | Single-Wide |
| Frequency | 60 Hz |
| Wattage | 69 W |
| Exhaust Airflow @ 0.600 in SP | 284 cfm |
| Exhaust Airflow @ 0.000 in SP | 410 cfm |
| Motor Speed | 2,700 rpm |
| Lighted | Without Light |
| Overall Depth | 8 in |
| Maximum Airflow | 410 cfm |
| Motor Type | Permanent Split Capacitor |
| Exhaust Airflow @ 0.100 in SP | 409 cfm |
| Nameplate Voltage | 120 V AC |
| Full Load Current | 0.948 A |
| Vent Design | Ducted |
| Exhaust Airflow @ 0.400 in SP | 328 cfm |
| Voltage | 120 V |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
