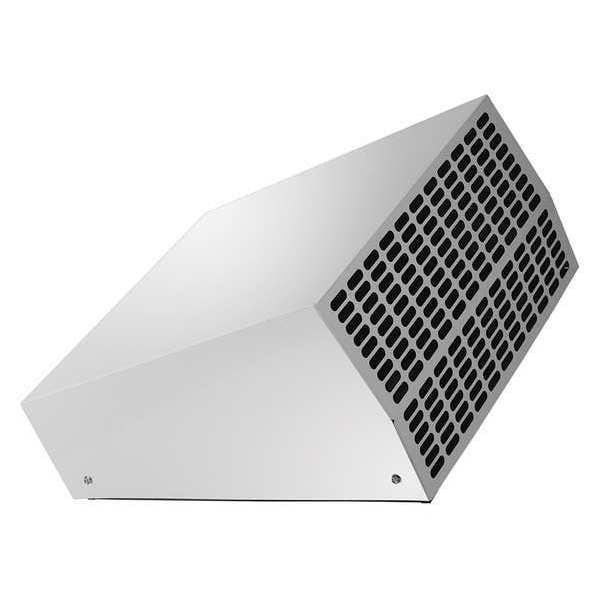

Exhaust Fan, 879 cfm, 120V, 60 Hz
| Type | Exterior Mount |
|---|---|
| Fits Duct Dia. (In.) | 10 |
| CFM @ 0.100-In. SP | 879 |
| Fan Voltage | 120 V AC |
| Housing Height (In.) | 21-1/4 |
| Housing Width (In.) | 17-7/8 |
| Housing Depth (In.) | 10 |
| Housing Material | Steel |
| Includes | Speed Control Potentiometer |
| CFM @ 0.400-In. SP | 131 |
| Max. Inlet Temp. (Deg. F) | 104 |
| Mounting Location | Wall |
| Item | Exhaust Fan |
| Agency Compliance | UL, AMCA |
| Housing Finish | Powder-Coated |
| Hz | 60 |
| CFM @ 0.600-In. SP | 679 |
| CFM @ 0.200-In. SP | 843 |
| Speed Control | MTP 10 |
| Phase | 1 |
| CFM @ 0.800-In. SP | 1,390,127,011,701,090 |
| Amps | 1.65 |
| Exhaust Airflow @ 0.200 in SP | 830 cfm |
| Blower Wheel Curve | Backward |
| Exhaust Airflow @ 0.100 in SP | 925 cfm |
| Motor Speed | 1,700 rpm |
| Motor Insulation | Class B |
| Duct Diameter | 10 in |
| Profile Width Family | Single-Wide |
| Exhaust Airflow @ 0.600 in SP | 698 cfm |
| Sensor Type | None |
| Maximum Ambient Operating Temperature | 104 deg F |
| Vent Design | Ducted |
| Lighted | Without Light |
| Exhaust Airflow @ 0.000 in SP | 972 cfm |
| Exhaust Airflow @ 0.400 in SP | 766 cfm |
| Discharge Direction | Vertical, Horizontal |
| Overall Depth | 10 in |
| Full Load Current | 1.65 A |
| Wattage | 127 W |
| Duct Shape | Round |
| Motor Type | Permanent Split Capacitor |
| Heater | Without Heater |
| Nameplate Voltage | 120 V AC |
| Frequency | 60 Hz |
| Overall Width | 17-7/8 in |
| Exhaust Airflow @ 0.800 in SP | 611 cfm |
| Overall Height | 21-1/4 in |
| Standards | AMCA, UL |
| Profile Height Family | High |
| Maximum Airflow | 972 cfm |
| Maximum Inlet Temperature | 104 deg F |
| Number of Speeds | Variable |
| Voltage | 120 V |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
