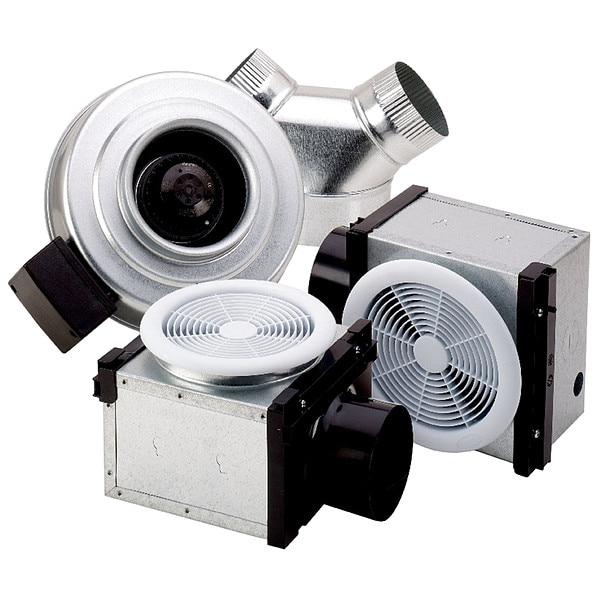

Exhaust Fan Kit, 4 and 6 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 4 in, 6 in |
| Voltage | 120 V |
| Max. Amps | 0.68 |
| Max. Wattage | 72 |
| Number of Speeds | 1 |
| Housing Dia. | 11-3/8 in |
| Length | 8 in |
| Motor RPM | 2,700 |
| CFM @ 0.000-In. SP | 303 |
| Motor HP | 0.1 |
| Flange Width | 1 in |
| Inlet and Outlet Dia. | 6 in |
| CFM @ 0.600-In. SP | 196 cfm |
| Speed Control | Mfr. No. 48C172 |
| Max. Inlet Temp. | 140 Degrees F |
| Includes | (2) Ceiling Grilles, (2) Grille Housings with Dampers, Mounting Bracket, Y Adapter |
| Standards | cULus, HVI, UL |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hz | 60 |
| CFM @ Duct | 270 cfm |
| Motor Enclosure | Totally Enclosed |
| CFM @ 0.800-In. SP | 160 cfm |
| Phase | 1 |
| CFM @ 1.000-In. SP | 134 cfm |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.200-In. SP | 260 cfm |
| CFM @ 0.400-In. SP | 229 cfm |
| Bearing Type | Ball Bearing |
| Green Certification or Other Recognition | ENERGY STAR |
| CFM @ 1.500-In. SP | 58 cfm |
| For Fan Type | Centrifugal Duct Fan |
| High-Efficiency Motor | No |
| Motor IP Rating | IP44 |
| Motor Output Power | 70 W |
| Overall Width | 7-1/4 in |
| Maximum Inlet Air Temperature | 140 deg F |
| Nameplate Voltage | 120V AC |
| Duct Diameter | 6 in |
| Motor Speed | 2,700 rpm |
| Mounting Orientation | Horizontal, Vertical |
| Application | General Purpose |
| Airflow @ 0.000 in SP | 303 cfm |
| Speed Control Included | No |
| Overall Diameter | 11-3/8 in |
| Speed Controllable | Yes |
| Overall Height | 13-7/8 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
