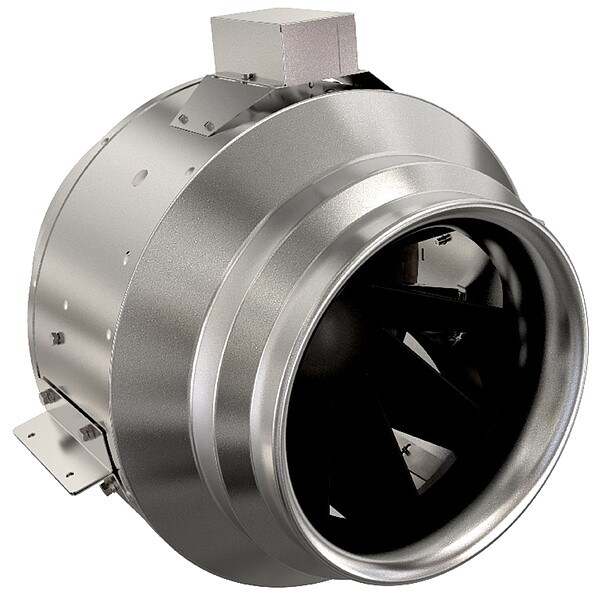

Inline Centrifugal Duct Fan, 20 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Housing Material | Galvanized Steel |
| Fits Duct Dia. | 20 in |
| Voltage | 230/460V |
| Max. Amps | 3.75 |
| Max. Wattage | 2,218 |
| Number of Speeds | 1 |
| Housing Dia. | 22-1/4 in |
| Length | 27 3/4 in |
| Motor RPM | 1,750 |
| Speed Control | No |
| Flange Width | 1 3/4 in |
| Max. Inlet Temp. | 140 Degrees F |
| CFM @ 0.000-In. SP | 6,291 |
| CFM @ Duct | 6291 cfm |
| Phase | 3 |
| Motor Enclosure | Totally Enclosed |
| CFM @ 0.375-In. SP | 5,933 cfm |
| Standards | AMCA, cULus |
| CFM @ 1.000-In. SP | 5,307 cfm |
| Includes | Mounting Brackets |
| Hz | 60 |
| CFM @ 1.500-In. SP | 4,987 cfm |
| CFM @ 0.750-In. SP | 5,617 cfm |
| Mounting Position | Horizontal or Vertical |
| CFM @ 0.250-In. SP | 6,054 cfm |
| Housing Finish | Galvanized Steel |
| Inlet and Outlet Dia. | 20 in |
| CFM @ 0.500-In. SP | 5,829 cfm |
| CFM @ 0.125-In. SP | 6174 cfm |
| Bearing Type | Sealed Ball Bearing |
| For Fan Type | Centrifugal Duct Fan |
| Duct Diameter | 20 in |
| Overall Height | 27-1/4 in |
| Motor IP Rating | IP54 |
| Overall Diameter | 26 in |
| Speed Control Included | No |
| Speed Controllable | Yes |
| Maximum Inlet Air Temperature | 140 deg F |
| Nameplate Voltage | 230/460V AC |
| Motor Speed | 1,750 rpm |
| Overall Width | 26 in |
| Airflow @ 0.000 in SP | 6,291 cfm |
| High-Efficiency Motor | No |
| Mounting Orientation | Horizontal, Vertical |
| Application | General Purpose |
| Motor Output Power | 2,443 W |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
