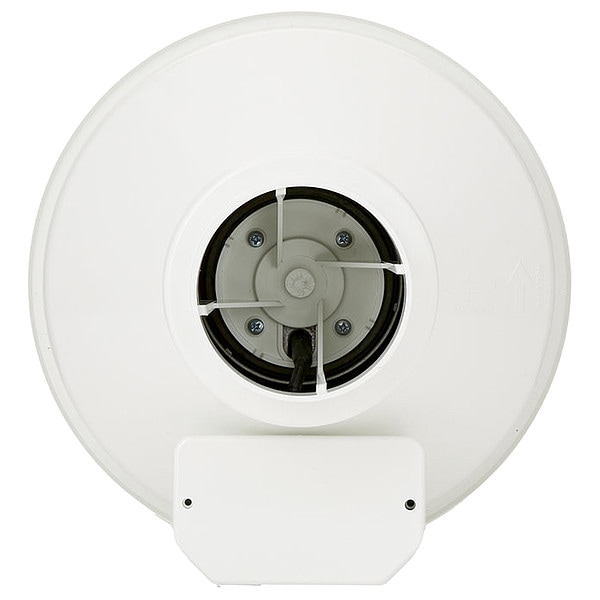

Inline Centrifugal Duct Fan, 4 In. Dia.
| Item | In-Line Duct Fan |
|---|---|
| Max. Amps | 0.17 |
| Voltage | 120V |
| Includes | Mounting Bracket |
| Max. Wattage | 19 |
| Bearing Type | Ball Bearing |
| CFM @ 0.600-In. SP | 63 cfm |
| Speed Control | Mfr. No. 48C172 |
| Max. Inlet Temp. | 140 Degrees F |
| Motor Enclosure | Totally Enclosed |
| Mounting Position | Horizontal or Vertical |
| Inlet and Outlet Dia. | 3-7/8 in |
| Motor HP | 1/50 hp |
| Flange Width | 7/8 in |
| CFM @ 0.400-In. SP | 94 cfm |
| Length | 9-5/8 in |
| Hz | 60 |
| CFM @ 0.800-In. SP | 20 cfm |
| CFM @ 0.000-In. SP | 151 |
| Motor RPM | 2,900 |
| Phase | 1 |
| Number of Speeds | 1 |
| Standards | CSA, HVI, UL |
| Fits Duct Dia. | 4 in |
| CFM @ 0.200-In. SP | 120 cfm |
| Housing Material | Plastic |
| Green Certification or Other Recognition | ENERGY STAR |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Housing Dia. | 9-1/2 in |
| Overall Height | 10-5/8 in |
| Application | General Purpose |
| Nameplate Voltage | 120V AC |
| Motor IP Rating | IP44 |
| Motor Output Power | 20 W |
| Overall Diameter | 10 in |
| Overall Width | 10 in |
| For Fan Type | Centrifugal Duct Fan |
| Mounting Orientation | Horizontal or Vertical |
| Maximum Inlet Air Temperature | 140 Degrees F |
| Speed Controllable | Yes |
| Duct Diameter | 4 in |
| High-Efficiency Motor | No |
| Airflow @ 0.000 in SP | 151 cfm |
| Speed Control Included | No |
| Motor Speed | 2,900 rpm |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
