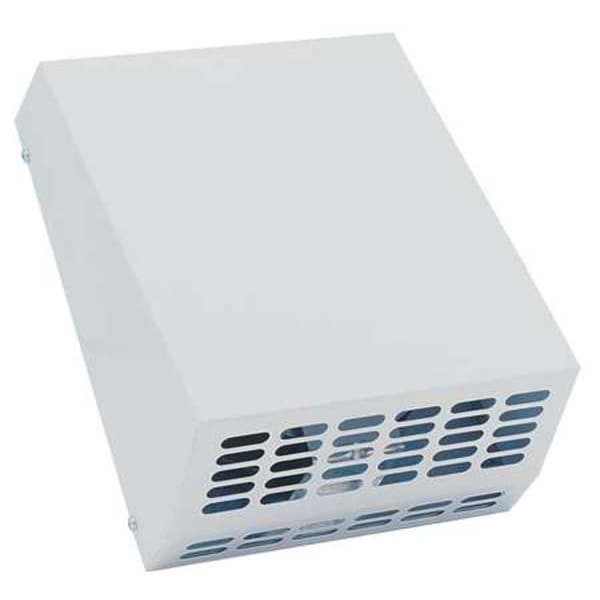

Wall Mount Exhaust Fan, 6 In Duct, 220 CFM
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Exterior Mount |
| Fits Duct Dia. (In.) | 6 |
| CFM @ 0.100-In. SP | 220 |
| Fan Voltage | 120 V AC |
| Drive Package With Motor Included | No |
| Housing Height (In.) | 13 |
| Housing Width (In.) | 10-1/4 |
| Housing Depth (In.) | 6 |
| Housing Material | Steel |
| Phase | 1 |
| Drive Package Included | Yes |
| Hz | 60 |
| Housing Finish | Powder-Coated |
| Item | Exhaust Fan |
| Mounting Location | Wall |
| CFM @ 0.200-In. SP | 204 |
| Amps | 0.84 |
| Max. Inlet Temp. (Deg. F) | 140 |
| Agency Compliance | HVI, cULus, cCSAus, Energy Star |
| CFM @ 0.800-In. SP | 123 |
| CFM @ 0.400-In. SP | 177 |
| CFM @ 0.600-In. SP | 150 |
| Includes | Impeller |
| Green Certification or Other Recognition | ENERGY STAR(R) Certified and HVI(R) Certified |
| Exhaust Airflow @ 0.200 in SP | 204 cfm |
| Exhaust Airflow @ 0.600 in SP | 150 cfm |
| Standards | cCSAus, cULus, HVI |
| Nameplate Voltage | 115 V AC |
| Duct Shape | Round |
| Profile Width Family | Single-Wide |
| Full Load Current | 0.75 A |
| Motor Type | Permanent Split Capacitor |
| Frequency | 60 Hz |
| Profile Height Family | High |
| Maximum Ambient Operating Temperature | 140 deg F |
| Maximum Inlet Temperature | 140 deg F |
| Exhaust Airflow @ 0.100 in SP | 220 cfm |
| Exhaust Airflow @ 0.800 in SP | 123 cfm |
| Motor Speed | 2,550 rpm |
| Exhaust Airflow @ 0.400 in SP | 177 cfm |
| Number of Speeds | Variable |
| Wattage | 93 W |
| Discharge Direction | Vertical, Horizontal |
| Overall Depth | 6 in |
| Sensor Type | None |
| Exhaust Airflow @ 0.000 in SP | 242 cfm |
| Blower Wheel Curve | Backward |
| Motor Insulation | Class B |
| Vent Design | Ducted |
| Maximum Airflow | 242 cfm |
| Lighted | Without Light |
| Duct Diameter | 6 in |
| Overall Height | 13 in |
| Heater | Without Heater |
| Overall Width | 10-1/4 in |
| Voltage | 120 V |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
