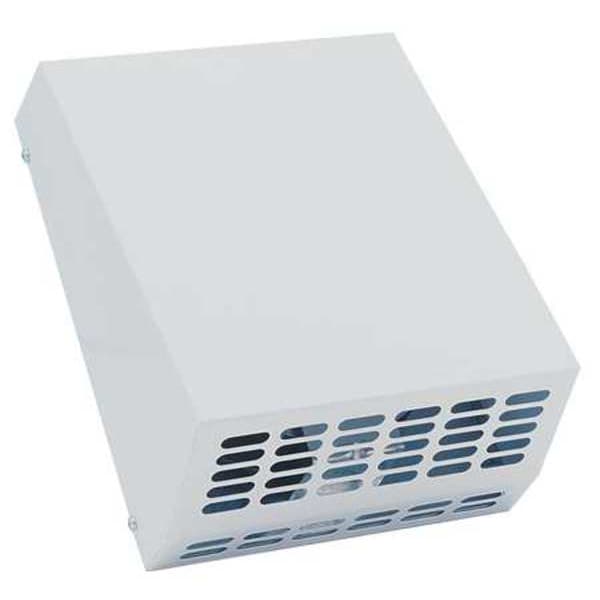

Wall Mount Exhaust Fan, 8 In Duct, 410 CFM
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Exterior Mount |
| Fits Duct Dia. (In.) | 8 |
| CFM @ 0.100-In. SP | 410 |
| Fan Voltage | 120 V AC |
| Housing Height (In.) | 17 |
| Housing Width (In.) | 14-1/4 |
| Housing Depth (In.) | 6 |
| Housing Material | Steel |
| Amps | 1.42 |
| Agency Compliance | HVI, cULus, cCSAus, Energy Star |
| Drive Package Included | No |
| Phase | 1 |
| CFM @ 0.400-In. SP | 348 |
| Mounting Location | Wall |
| CFM @ 0.800-In. SP | 282 |
| Max. Inlet Temp. (Deg. F) | 140 |
| CFM @ 0.200-In. SP | 392 |
| Housing Finish | Powder-Coated |
| CFM @ 0.600-In. SP | 312 |
| Item | Exhaust Fan |
| Hz | 60 |
| Includes | Impeller |
| Green Certification or Other Recognition | ENERGY STAR(R) Certified and HVI(R) Certified |
| Overall Depth | 6 in |
| Wattage | 150 W |
| Exhaust Airflow @ 0.600 in SP | 266 cfm |
| Maximum Ambient Operating Temperature | 140 deg F |
| Frequency | 60 Hz |
| Motor Insulation | Class B |
| Sensor Type | None |
| Exhaust Airflow @ 0.400 in SP | 305 cfm |
| Motor Type | Permanent Split Capacitor |
| Exhaust Airflow @ 0.000 in SP | 378 cfm |
| Vent Design | Ducted |
| Maximum Airflow | 378 cfm |
| Discharge Direction | Vertical, Horizontal |
| Heater | Without Heater |
| Exhaust Airflow @ 0.100 in SP | 360 cfm |
| Profile Height Family | High |
| Profile Width Family | Single-Wide |
| Duct Diameter | 8 in |
| Nameplate Voltage | 115 V AC |
| Overall Width | 14-1/4 in |
| Number of Speeds | Variable |
| Full Load Current | 1.34 A |
| Exhaust Airflow @ 0.200 in SP | 392 cfm |
| Standards | cCSAus, cULus, HVI |
| Blower Wheel Curve | Backward |
| Motor Speed | 2,900 rpm |
| Lighted | Without Light |
| Duct Shape | Round |
| Exhaust Airflow @ 0.800 in SP | 282 cfm |
| Maximum Inlet Temperature | 140 deg F |
| Overall Height | 17 in |
| Voltage | 120 V |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
