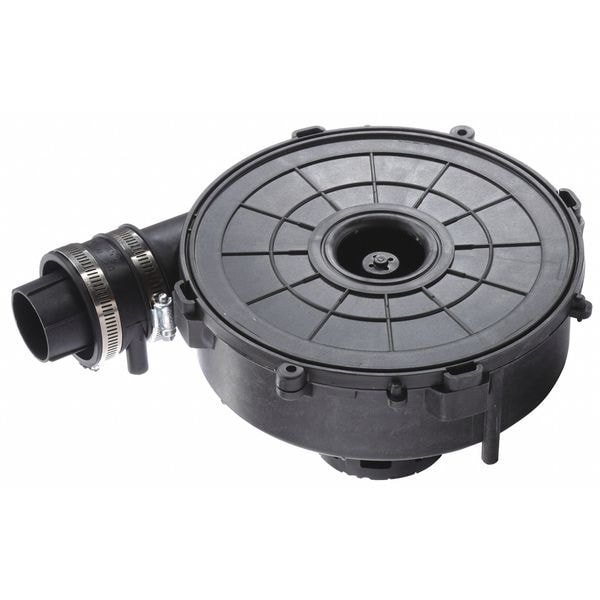

Draft Inducer, 115, Plastic, 5 7/8 in W, 9 1/2 in H, 2.0/1.7 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 2.0/1.7 |
|---|---|
| Item | Draft Inducer |
| Voltage | 115 V |
| Depth (In.) | 9-1/2 |
| Construction Material | Plastic |
| Height (In.) | 9-1/2 |
| For Use With Mfr. Model Number | 7021-10602, 7021-11106, 7021-11174 |
| Fits Brand | Lennox |
| Replaces | Fasco 702110602, 702111106, 702111174 (Flexible Conduit Over Leads), Lennox 45037-001 |
| Agency Compliance | CSA Motor Only, UL |
| Width (In.) | 5-7/8 |
| Application | Furnaces |
| CFM @ 0.500-In. SP | 98 |
| CFM @ 0.700-In. SP | 84 |
| CFM @ 1.000-In. SP | 62 |
| CFM @ 0.000-In. SP | 121 |
| Maximum Inlet Air Temperature | 40 deg C |
| Outlet Width | Not Applicable |
| Overall Width | 5-7/8 in |
| Replacement For Manufacturer Model Number | 45037-001, 702110602, 702111106, 702111174 |
| Includes Motor | Yes |
| Frequency | 60 Hz |
| Maximum Static Pressure | 3.5 in wc |
| Maximum Motor Speed | 3,400 rpm |
| Overall Height | 9-1/2 in |
| Wheel Material | Polypropylene |
| Maximum Fan Speed | 3,400 rpm |
| Inlet Diameter | 2 in |
| Standards | UL Listed, CSA Certified |
| Compatible with Brand | Lennox |
| Airflow @ 0.000 in SP | 71 cfm |
| Motor Insulation Class | B |
| For Appliance Type | Furnaces |
| Outlet Height | Not Applicable |
| Motor Type | Shaded Pole |
| Wheel Type | Backward-Curved |
| Blower Type | Induced Draft Blower |
| Overall Depth | 9-1/2 in |
| Phase | 1 |
| Nameplate Voltage | 115V AC |
| Current | 1.8 A |
| OEM Replacement | Yes |
| Housing Material | Plastic |
| Outlet Shape | Round |
| Outlet Diameter | 1-5/8 in |
| Electrical Connection | Wire Leads |
| Wheel Diameter | 7-1/2 in |
| For Use With | 7021-10602, 7021-11106, 7021-11174, Lennox |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
