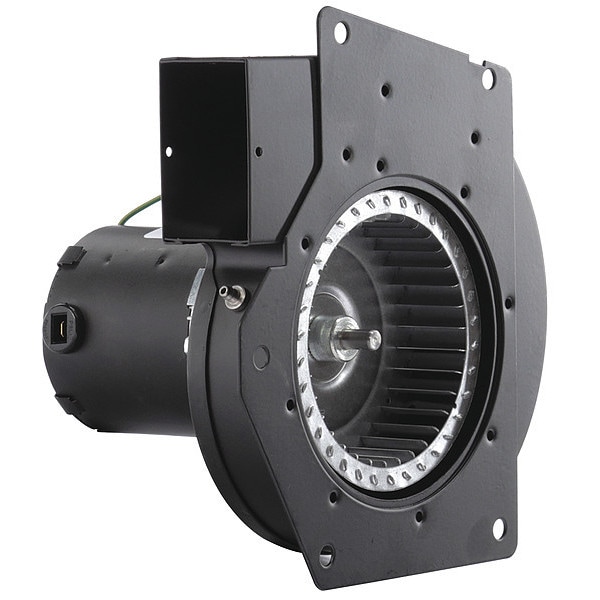

Draft Inducer, 230, Steel, 6 13/64 in W, 8 37/64 in H, 4.9/1.75x2.75 Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 4.9/1.75x2.75 |
|---|---|
| Item | Draft Inducer |
| Voltage | 230 V |
| Depth (In.) | 7-11/64 |
| Construction Material | Steel |
| Height (In.) | 8-37/64 |
| For Use With Mfr. Model Number | 7021-7617, 7021-9237 |
| Fits Brand | ICP |
| Replaces | Fasco 70217617, 70219237, ICP 1054268P |
| Agency Compliance | CSA Motor Only, UL |
| Width (In.) | 6-13/64 |
| Application | Furnaces |
| CFM @ 1.000-In. SP | 57 |
| CFM @ 0.000-In. SP | 78 |
| CFM @ 1.40-In. SP | 23 |
| CFM @ 0.500-In. SP | 71 |
| CFM @ 0.700-In. SP | 65 |
| Maximum Inlet Air Temperature | 40 deg C |
| Overall Width | 6-1/8 in |
| Phase | 1 |
| Outlet Height | 2-3/4 in |
| Motor Insulation Class | B |
| Blower Type | Induced Draft Blower |
| Maximum Fan Speed | 3,400 rpm |
| For Appliance Type | Furnaces |
| Wheel Diameter | 4-1/2 in |
| Airflow @ 0.000 in SP | 80 cfm |
| Maximum Static Pressure | 1.5 in wc |
| Inlet Diameter | 4-7/8 in |
| Housing Material | Steel |
| Electrical Connection | Wire Leads |
| Wheel Material | Steel |
| Compatible with Brand | Intercity Products |
| Replacement For Manufacturer Model Number | 1054268P, 7021-7617, 7021-9237 |
| OEM Replacement | Yes |
| Outlet Shape | Rectangular |
| Overall Height | 8-1/2 in |
| Frequency | 60 Hz |
| Includes Motor | Yes |
| For Use With | 7021-7617, 7021-9237, ICP |
| Maximum Motor Speed | 3,000 rpm |
| Standards | UL Listed, CSA Certified |
| Outlet Diameter | Not Applicable |
| Current | 0.5 A |
| Overall Depth | 7-1/8 in |
| Wheel Type | Forward-Curved |
| Motor Type | Shaded Pole |
| Nameplate Voltage | 208-230V AC |
| Outlet Width | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
