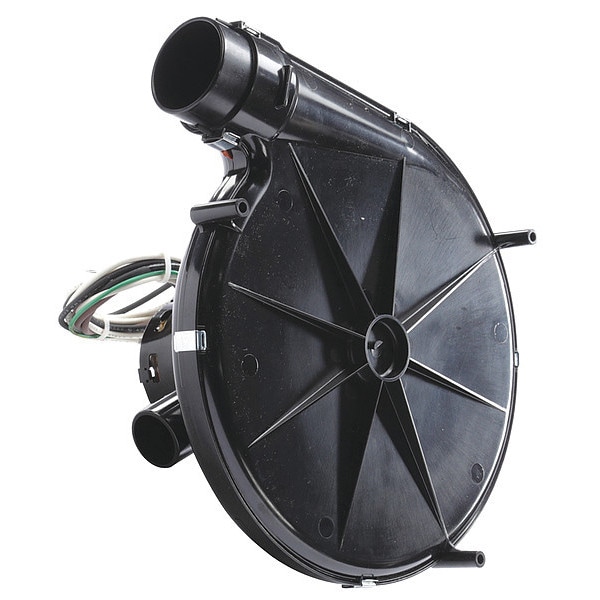

Draft Inducer Blower, 115, Plastic, 11 37/64 in W, 11 33/64 in H, 1.25/2.40" Inlet and Outlet Dia.
| Inlet and Outlet Dia. (In.) | 1.25/2.40" |
|---|---|
| Item | Draft Inducer Blower |
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 7-13/64 |
| Construction Material | Plastic |
| Amps | 0.8 |
| Height (In.) | 11-33/64 |
| Vent Pipe Dia. (In.) | 3.3 |
| For Use With Mfr. Model Number | 1011350, 7062-4578, 7062-4832 |
| Fits Brand | ICP, Alltemp |
| Replaces | Alltemp (Rotom) FB-RFB350, Fasco 70624578, 70624832, ICP 1011350 |
| Agency Compliance | CSA Motor Only, UL |
| Width (In.) | 11-37/64 |
| Application | Furnaces |
| Number of Speeds | 1 |
| RPM | 3,450 |
| Bearings | Ball |
| Enclosure | Open |
| Class | B |
| Overload Protection | Thermal |
| CFM @ 1.40-In. SP | 50 |
| CFM @ 0.700-In. SP | 54 |
| CFM @ 0.500-In. SP | 55 |
| CFM @ 0.000-In. SP | 57 |
| CFM @ 1.000-In. SP | 52 |
| Motor Type | Permanent Split Capacitor |
| Compatible with Brand | Alltemp (Rotom), Intercity Products |
| Electrical Connection | Wire Leads |
| Blower Type | Induced Draft Blower |
| Replacement For Manufacturer Model Number | 1011350, 7062-4578, 7062-4832, FB-RFB350 |
| Motor Insulation Class | B |
| Maximum Fan Speed | 3,400 rpm |
| Includes Motor | Yes |
| Overall Width | 11-1/2 in |
| Frequency | 60 Hz |
| Maximum Inlet Air Temperature | 40 deg C |
| Overall Height | 11-1/2 in |
| Overall Depth | 7-1/8 in |
| Airflow @ 0.000 in SP | 58 cfm |
| For Appliance Type | Furnaces |
| OEM Replacement | Yes |
| Outlet Diameter | 2-3/8 in |
| Housing Material | Plastic |
| Inlet Diameter | 1-1/4 in |
| Maximum Static Pressure | 5.25 in wc |
| Nameplate Voltage | 115V AC |
| Wheel Diameter | 9 in |
| Maximum Motor Speed | 3,450 rpm |
| Outlet Shape | Round |
| Phase | 1 |
| Outlet Width | Not Applicable |
| Wheel Type | Backward-Curved |
| For Use With | 1011350, 7062-4578, 7062-4832, ICP |
| Standards | UL Listed, CSA Certified |
| Current | 0.8 A |
| Outlet Height | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
