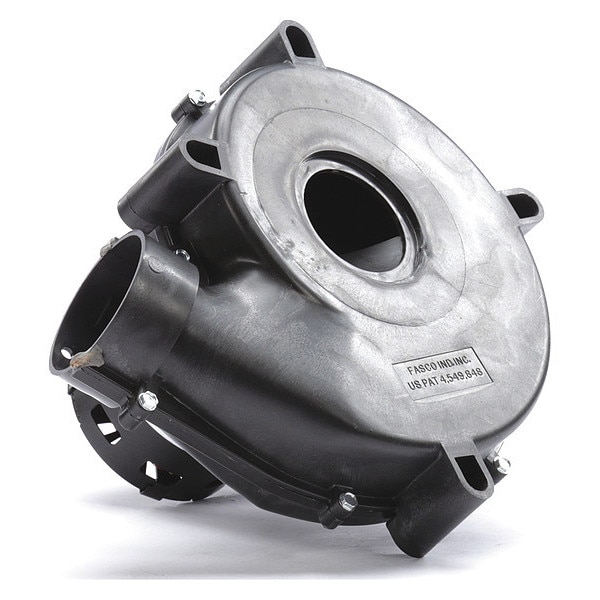

Induced Draft Furnace Blower, 115, Plastic, 9 1/8 in W, 7 3/4 in H
| Item | Induced Draft Furnace Blower |
|---|---|
| Type | Replacement |
| Voltage | 115 V |
| Depth (In.) | 6-3/8 |
| HP | 1/20 HP |
| Construction Material | Plastic |
| Amps | 0.7 |
| Remarks | Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions |
| Height (In.) | 7-3/4 |
| For Use With Mfr. Model Number | 70-22165-81 |
| Fits Brand | Rheem |
| Replaces | Alltemp (Rotom) FB-RFB142, Fasco 70621881, Fasco 70624534, Rheem 70-22165-81 |
| Agency Compliance | UL |
| Width (In.) | 9-1/8 |
| Application | Furnaces |
| Watts | 85 |
| CFM @ 0.000-In. SP | 77 |
| CFM @ 1.40-In. SP | 53 |
| CFM @ 0.700-In. SP | 65 |
| CFM @ 0.500-In. SP | 68 |
| CFM @ 1.000-In. SP | 61 |
| Power Consumption | 85 W |
| Includes Motor | Yes |
| Outlet Width | Not Applicable |
| Maximum Motor Speed | 3,450 rpm |
| Overall Width | 9-1/8 in |
| Outlet Diameter | 2-3/8 in |
| Phase | 1 |
| Wheel Type | Forward-Curved |
| Overall Depth | 6-3/8 in |
| Outlet Height | Not Applicable |
| Maximum Motor Horsepower | 1/20 hp |
| Wheel Material | Polypropylene |
| Compatible with Brand | Rheem, RUUD |
| Nameplate Voltage | 115V AC |
| OEM Replacement | Yes |
| For Use With | 70-22165-81, Rheem |
| Wheel Diameter | 4-5/8 in |
| Housing Material | Plastic |
| Maximum Inlet Air Temperature | 40 deg C |
| Motor Type | Permanent Split Capacitor |
| Blower Type | Induced Draft Blower |
| Current | 0.7 A |
| Standards | UL Listed, CSA Certified |
| Electrical Connection | Wire Leads |
| Airflow @ 0.000 in SP | 99 cfm |
| For Fuel Type | Natural Gas |
| Inlet Diameter | 2 in |
| For Appliance Type | Gas Furnaces |
| Frequency | 60 Hz |
| Overall Height | 7-3/4 in |
| Maximum Fan Speed | 3,400 rpm |
| Maximum Static Pressure | 4 in wc |
| Motor Insulation Class | B |
| Outlet Shape | Round |
| Replacement For Manufacturer Model Number | 70-22165-81, 7062-4534, 70621881, FB-RFB142 |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
