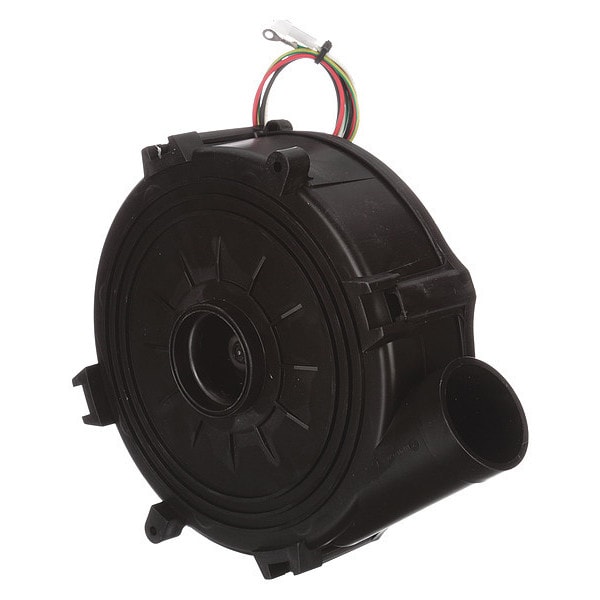

Round OEM Blower, 3000 RPM, 1 Phase, Direct, Plastic 2 Speed
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 3.5 |
| Housing Material | Plastic |
| Inlet Dia. | 2 in |
| Number of Speeds | 2 |
| Overall Height | 9-7/8 in |
| Overall Width | 9-7/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 7-1/2 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 120V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Replaces | Mfr. Model No. 119351-00 |
| Max. Ambient Temp. | 104 deg F |
| Item | OEM Blower |
| Mounting Position | All Position |
| Motor Insulation | Class H |
| Agency Compliance | Ul Recognized |
| Bearing Type | Ball |
| Blower Wheel Width | 1-1/4 in |
| Lead Length | 14 in |
| Wheel Type | Backward-Curved |
| Hz | 60 |
| Housing Color | Black |
| Max. Inlet Temp. | 180 deg F |
| Overall Depth | 5-3/4 in |
| RPM | 3,000 |
| Motor Enclosure | Open |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Wheel Diameter | 7-1/2 in |
| Nameplate Voltage | 120V AC |
| Standards | UL Listed |
| Airflow @ 0.000 in SP | 75 cfm |
| Electrical Connection | Wire Leads |
| Maximum Motor Speed | 3,000 rpm |
| Outlet Shape | Round |
| Motor Type | Shaded Pole |
| Outlet Diameter | 2-3/8 in |
| Maximum Inlet Air Temperature | 180 deg F |
| Maximum Static Pressure | 3.625 in wc |
| Current | 3.5 A |
| Replacement For Manufacturer Model Number | 119351-00 |
| Motor Insulation Class | B |
| Compatible with Brand | Goodman |
| OEM Replacement | Yes |
| Frequency | 60 Hz |
| Application | Furnaces |
| Inlet Diameter | 2 in |
| Maximum Fan Speed | 3,000 rpm |
| Voltage | 120VAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
