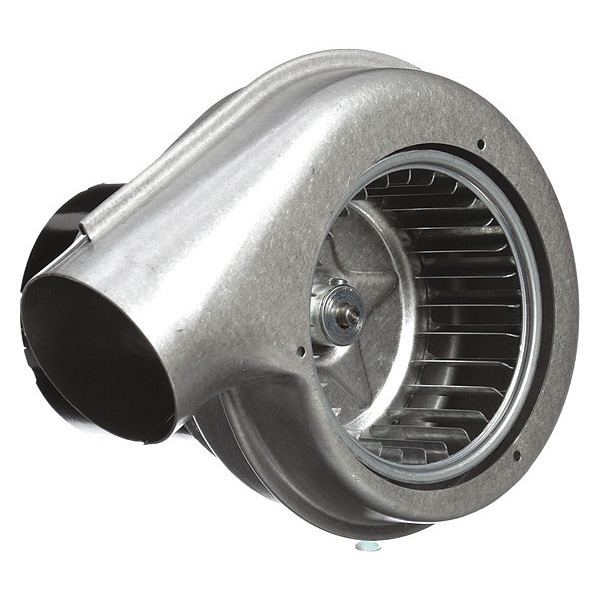

Round OEM Blower, 3000 RPM, 1 Phase, Direct, Steel 1 Speed
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 0.8 |
| Housing Material | Steel |
| Inlet Dia. | 3-7/8 in |
| Number of Speeds | 1 |
| Overall Height | 7 in |
| Overall Width | 6-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 3-13/16 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 120V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Insulation | Class B |
| Max. Inlet Temp. | 400 deg F |
| RPM | 3,000 |
| Agency Compliance | CSA Compliant, UL Recognized |
| Max. Ambient Temp. | 104 deg F |
| Replaces | Mfr. Model No. 1094073, Mfr. Model No. 1094073P, Mfr. Model No. 7021-10280, Mfr. Model No. 7021-8741, Mfr. Model No. 7021-8742 |
| Mounting Position | All Position |
| Overall Depth | 6 in |
| Hz | 60 |
| Item | OEM Blower |
| Motor Enclosure | Open |
| Blower Wheel Width | 1-7/8 in |
| Housing Finish | Metal |
| Bearing Type | Sleeve |
| Lead Length | 5 in |
| Housing Color | Natural |
| Wheel Type | Forward-Curved |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Airflow @ 0.000 in SP | 81 cfm |
| Application | Furnaces |
| Maximum Static Pressure | 1 in wc |
| Current | 0.8 A |
| Outlet Shape | Round |
| Wheel Material | Steel |
| Maximum Fan Speed | 3,000 rpm |
| Outlet Diameter | 2-1/4 in |
| OEM Replacement | Yes |
| Standards | CSA Certified, UL Listed |
| Maximum Inlet Air Temperature | 400 deg F |
| Replacement For Manufacturer Model Number | 7021-9593 |
| Electrical Connection | Wire Leads |
| Maximum Motor Speed | 3,000 rpm |
| Frequency | 60 Hz |
| Motor Type | Shaded Pole |
| Motor Insulation Class | B |
| Compatible with Brand | Lennox |
| Wheel Diameter | 3-3/4 in |
| Inlet Diameter | 3-7/8 in |
| Nameplate Voltage | 120V AC |
| Voltage | 120VAC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
