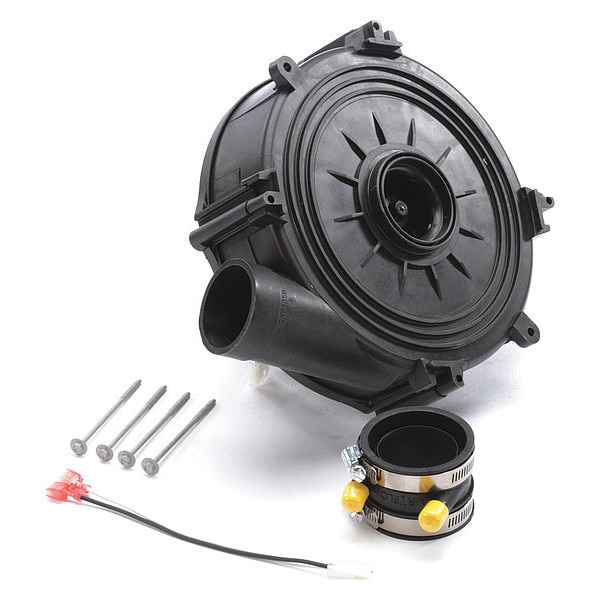

Round OEM Blower, 3300 RPM, 1 Phase, Direct, Plastic 1 Speed
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 2.4 |
| Housing Material | Plastic |
| Includes | Parts Kit |
| Inlet Dia. | 1-3/4 in |
| Number of Speeds | 1 |
| Overall Height | 9-7/8 in |
| Overall Width | 9-7/8 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 7-1/2 in |
| Blower Motor Type | Shaded Pole |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Replaces | 330701-701FA, 7058-1124 |
| Mounting Position | All Position |
| RPM | 3,300 |
| Item | OEM Blower |
| Lead Length | 6 in |
| Bearing Type | Ball |
| Motor Enclosure | Open Internal Fan-Cooled |
| Overall Depth | 5-7/8 in |
| Agency Compliance | CSA Compliant, UL Recognized |
| Max. Inlet Temp. | 180 deg F |
| Max. Ambient Temp. | 104 deg F |
| Blower Wheel Width | 1-1/4 in |
| Housing Color | Black |
| Wheel Type | Backward-Curved |
| Motor Insulation | Class B |
| Hz | 60 |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Outlet Diameter | 2-3/8 in |
| Airflow @ 0.000 in SP | 75 cfm |
| Frequency | 60 Hz |
| Maximum Inlet Air Temperature | 180 deg F |
| Outlet Shape | Round |
| Nameplate Voltage | 115V AC |
| Standards | CSA Certified, UL Listed |
| Motor Insulation Class | B |
| Wheel Diameter | 7-5/8 in |
| Compatible with Brand | Intercity Products |
| Maximum Fan Speed | 3,300 rpm |
| Electrical Connection | Wire Leads |
| Inlet Diameter | 1-3/4 in |
| Motor Type | Shaded Pole |
| Maximum Static Pressure | 4 in wc |
| Current | 2.4 A |
| Replacement For Manufacturer Model Number | 330701-701FA, 7058-1124 |
| Application | Furnaces |
| Maximum Motor Speed | 3,300 rpm |
| OEM Replacement | Yes |
| Wheel Material | Polypropylene |
| Voltage | 115VAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
