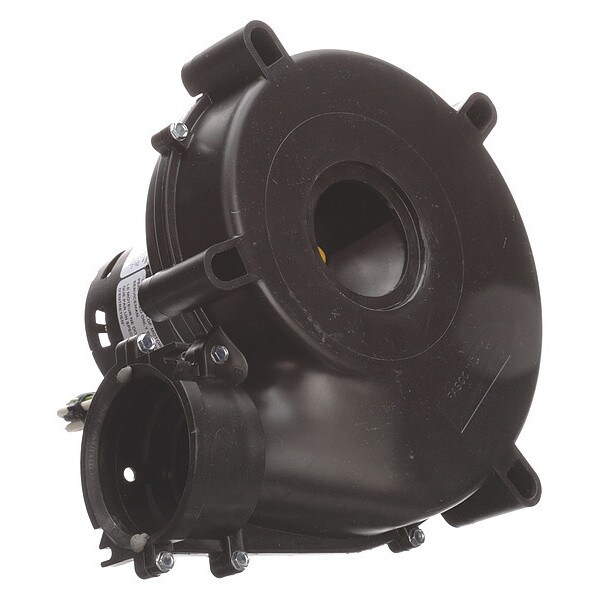

Round OEM Blower, 3450 RPM, 1 Phase, Direct, Plastic 1 Speed
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 0.7 |
| Housing Material | Plastic |
| Number of Speeds | 1 |
| Overall Height | 9-1/8 in |
| Overall Width | 8-1/4 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | No |
| Blower Wheel Diameter | 4-3/4 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 115V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | Yes |
| Max. Ambient Temp. | 104 deg F |
| Max. Inlet Temp. | 180 deg F |
| Agency Compliance | CSA Compliant, UL Recognized |
| Motor Insulation | Class B |
| Bearing Type | Sleeve |
| Mounting Position | Shaft Horizontal |
| Blower Wheel Width | 1-11/16 in |
| Motor Enclosure | Open |
| Hz | 60 |
| Replaces | 6212850, 7021-7975 |
| Lead Length | 28 in |
| Housing Color | Black |
| Overall Depth | 6-1/2 in |
| Item | OEM Blower |
| RPM | 3,450 |
| Wheel Type | Forward-Curved |
| Outlet Width | Not Applicable |
| Outlet Height | Not Applicable |
| Application | Furnaces |
| Replacement For Manufacturer Model Number | 7062-3151 |
| Maximum Static Pressure | Not Applicable |
| Frequency | 60 Hz |
| Inlet Diameter | 2 in |
| Maximum Fan Speed | 3,450 rpm |
| Mounting Orientation | Horizontal |
| Nameplate Voltage | 115V AC |
| OEM Replacement | Yes |
| Electrical Connection | Wire Leads |
| Motor Insulation Class | B |
| Maximum Motor Speed | 3,450 rpm |
| Wheel Material | Polypropylene |
| Maximum Inlet Air Temperature | 180 deg F |
| Standards | UL Listed |
| Current | 0.7 A |
| Motor Type | Permanent Split Capacitor |
| Wheel Diameter | 4-5/8 in |
| Outlet Shape | Round |
| Outlet Diameter | 2-3/8 in |
| Compatible with Brand | Amana |
| Voltage | 115VAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
