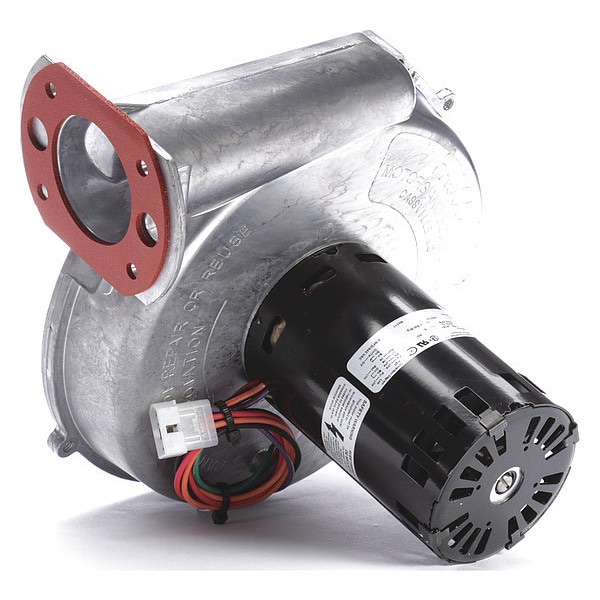

Round OEM Blower, 3500 RPM, 1 Phase, Direct, Aluminum 2 Speed
| Drive Type | Direct Drive |
|---|---|
| Full Load Amps | 0.65 |
| Housing Material | Aluminum |
| Includes | Gasket |
| Number of Speeds | 2 |
| Overall Height | 10-1/2 in |
| Overall Width | 9-1/2 in |
| Phase | 1 |
| Blower Item | OEM Specialty Blower |
| Blower Outlet Shape | Round |
| With Flange | Yes |
| Blower Wheel Diameter | 7-7/8 in |
| Blower Motor Type | Permanent Split Capacitor |
| Blower Voltage | 208/230V AC |
| Blower Thermal Protection | Auto |
| Blower Conduit Box | No |
| Motor Insulation | Class B |
| Lead Length | 12 in |
| Bearing Type | Ball |
| Housing Color | Natural |
| Max. Ambient Temp. | 104 deg F |
| Overall Depth | 8 in |
| Max. Inlet Temp. | 200 deg F |
| Item | OEM Blower |
| Hz | 50/60 |
| RPM | 3,500 |
| Blower Wheel Width | 53/64 in |
| Mounting Position | Shaft Horizontal |
| Agency Compliance | CSA Compliant, UL Recognized |
| Wheel Type | Backward-Inclined |
| Motor Enclosure | Open Internal Fan-Cooled |
| Replaces | 7062-3971, X38040309-01 |
| Outlet Height | Not Applicable |
| Outlet Width | Not Applicable |
| Maximum Static Pressure | 3.5 in wc |
| Outlet Shape | Round |
| Electrical Connection | Wire Leads |
| OEM Replacement | Yes |
| Current | 0.65 A |
| Maximum Fan Speed | 3,500 rpm |
| Wheel Material | Aluminum |
| Motor Type | Permanent Split Capacitor |
| Mounting Orientation | Horizontal |
| Airflow @ 0.000 in SP | 127 cfm |
| Standards | CSA Certified, UL Listed |
| Maximum Inlet Air Temperature | 200 deg F |
| Wheel Diameter | 7-3/4 in |
| Outlet Diameter | 2-1/4 in |
| Maximum Motor Speed | 3,500 rpm |
| Application | Furnaces |
| Compatible with Brand | Trane |
| Replacement For Manufacturer Model Number | 7062-3971, X38040309-01 |
| Inlet Diameter | 8-3/4 in |
| Nameplate Voltage | 208-230V AC |
| Motor Insulation Class | B |
| Frequency | 50/60 Hz |
| Voltage | 208/230VAC |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
