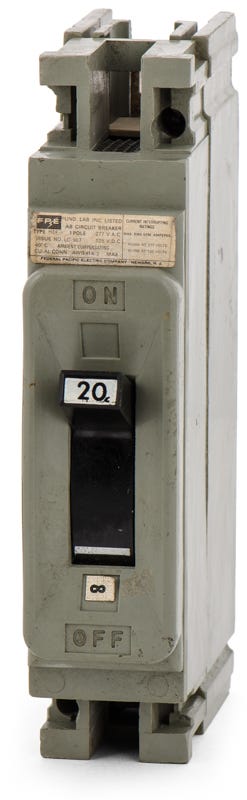

The Federal Pacific HEF213020 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 277VAC. It has an interrupting rating of 22kAIC at 277V. The HEF213020 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | HEF |
| Amperage | 20 |
| Voltage | 277VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 22kAIC at 277V |
| Frame Type | HEF |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | HEF213020-R |
