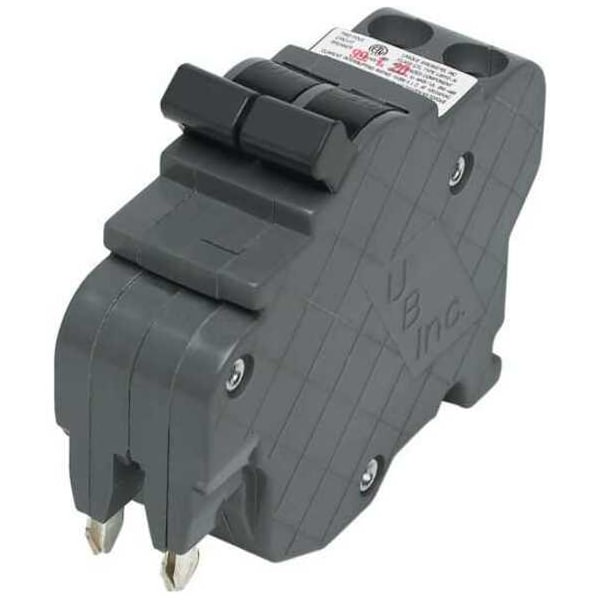

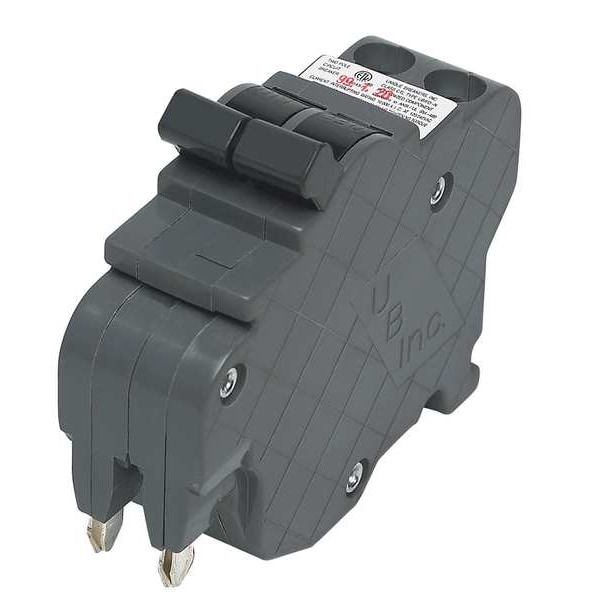

Miniature Circuit Breaker, UBIF Series, 40A, 2 Pole, 120/240V AC, 10kA at 120/240V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | UBIF |
| Amps | 40A |
| Number of Poles | 2 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120/240V AC |
| Terminal Connection | Lug |
| Frame Size | HACR, 70A |
| Width | 1 in |
| Depth | 2.55 in |
| Height | 3.36 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 8 AWG |
| Standards | ETL Listed, UL Listed |
| For Use With | Federal Pacific Load Centers |
| Min. Wire Size | 14 AWG |
| Max. Operating Temp. | 250 deg F |
| Compatible Panelboard/Load Center Series | X125-0816C |
| Min. Operating Temp. | 0 deg F |
| Length (Straight Wireway) | 3.36 in |
| Form Factor | Plug-in |
| Additional Information | Rated HACR, Voltage Rating (VAC): 120/240 |
| Product Name | UBIF0240N Thin 2P 40A CB |
| Application/Usage | Load Center |
| Product Line | Thin |
| Voltage | 120/240VAC |
| Length | 3.36 in |
| Package Quantity | 1 |
