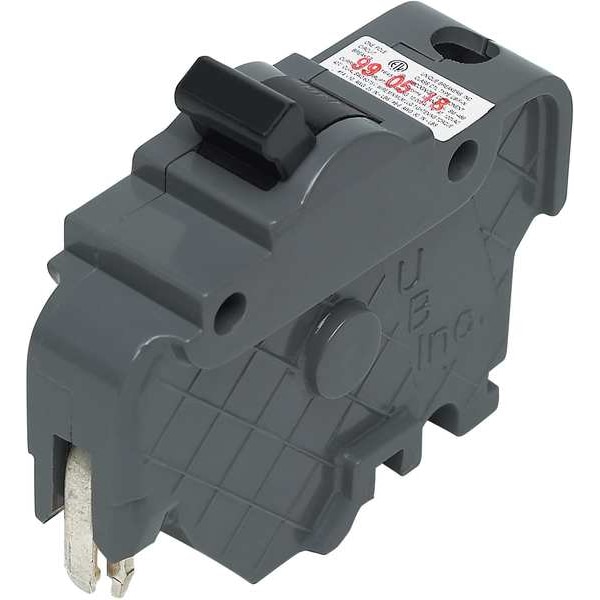

Miniature Circuit Breaker, UBIF Series, 50A, 1 Pole, 120/240V AC, 10kA at 120V AC
| Item | Miniature Circuit Breaker |
|---|---|
| Series | UBIF |
| Amps | 50A |
| Number of Poles | 1 |
| AC Voltage Rating | 120/240V AC |
| Circuit Breaker Type | Standard |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Plug In |
| Max. AIR Rating | 10kA at 120V AC |
| Terminal Connection | Lug |
| Frame Size | 60A, SWD |
| Width | 1 in |
| Depth | 2.55 in |
| Height | 3.36 in |
| DC Voltage Rating | Not Rated |
| Min. Wire Size | 14 AWG |
| For Use With | Federal Pacific Load Centers |
| Standards | ETL Listed, UL Listed |
| Max. Wire Size | 4 AWG |
| Min. Operating Temp. | 0 deg F |
| Max. Operating Temp. | 250 deg F |
| Compatible Panelboard/Load Center Series | X125-0816C |
| Length (Straight Wireway) | 3.36 in |
| Special Features | Thick Series, Type NA, Plug In |
| Size | 1 in |
| Length | 3.36 in |
| Voltage | 120/240VAC |
| Package Quantity | 1 |
