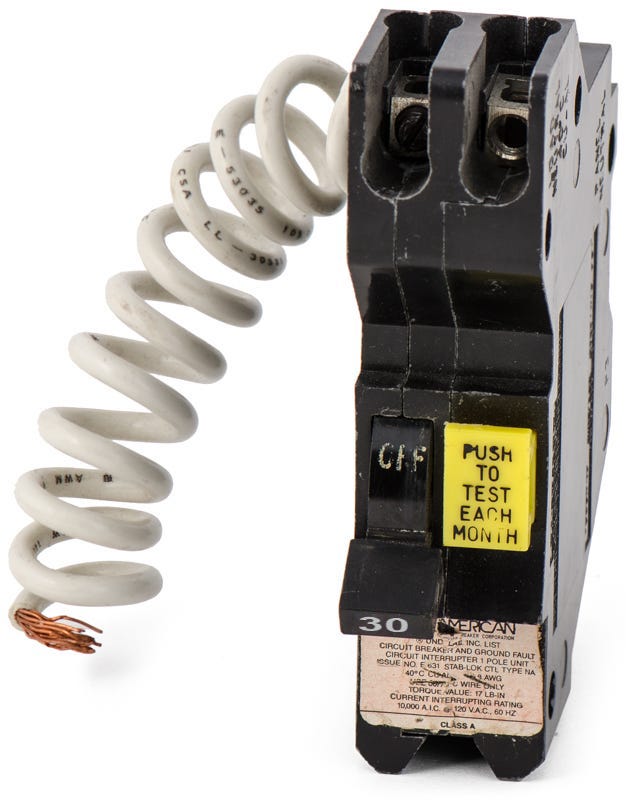

The Federal Pacific NAGF30 is a 1 Pole molded case ground fault circuit breaker with a current rating of 30 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The NAGF30 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NAG |
| Amperage | 30 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Interrupting Rating | 10kAIC at 120V |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Circuit Breaker Type | GFCI |
| Mpn | NAGF30 |
