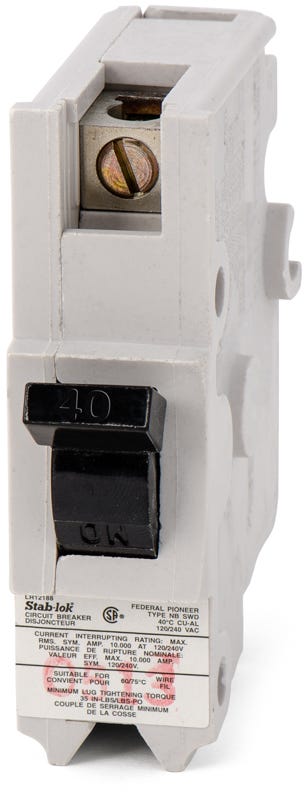

The Federal Pacific NB111040 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 120VAC. It has an interrupting rating of 10kAIC at 120V. The NB111040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NB |
| Amperage | 40 |
| Voltage | 120VAC |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL |
| Interrupting Rating | 10kAIC at 120V |
| Frame Type | NB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | NB111040 |
