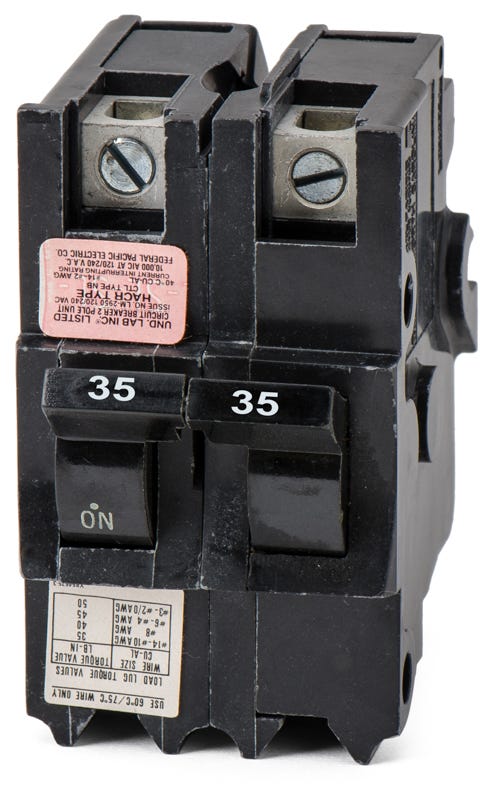

The Federal Pacific NB221035 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 35 Amps and a voltage rating of 240VAC. It has an interrupting rating of 10kAIC at 240V. The NB221035 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NB |
| Amperage | 35 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 10kAIC at 240V |
| Frame Type | NB |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | NB221035 |
