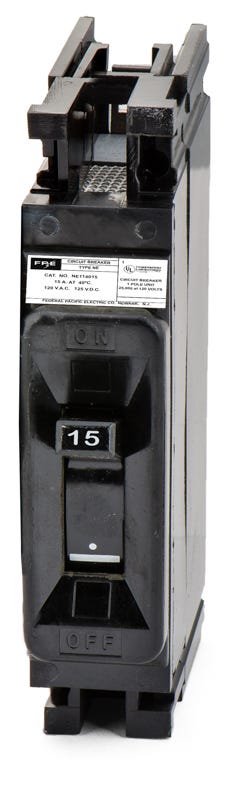

The Federal Pacific NE114015 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 15 Amps and a voltage rating of 120V. It has an interrupting rating of 14kAIC at 120V. The NE114015 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 15 |
| Voltage | 120 |
| Poles | 1 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Interrupting Rating | 14kAIC at 120V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous |
| Mpn | NE114015-R |
