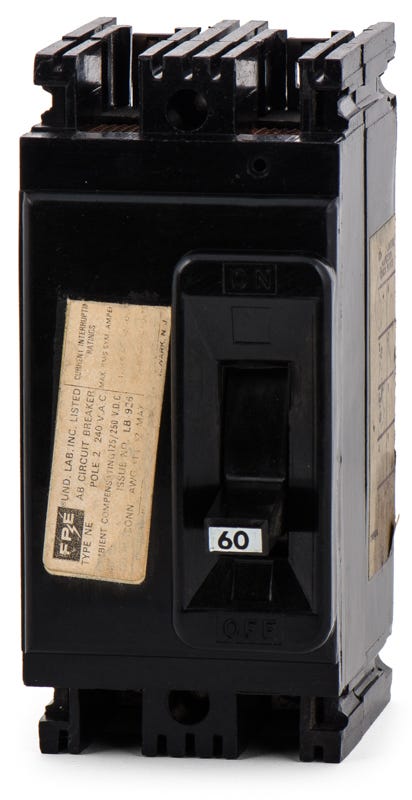

The Federal Pacific NE223060 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 240V. It has an interrupting rating of 18kAIC at 240V. The NE223060 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NE |
| Amperage | 60 |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Interrupting Rating | 18kAIC at 240V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Mpn | NE223060-R |
