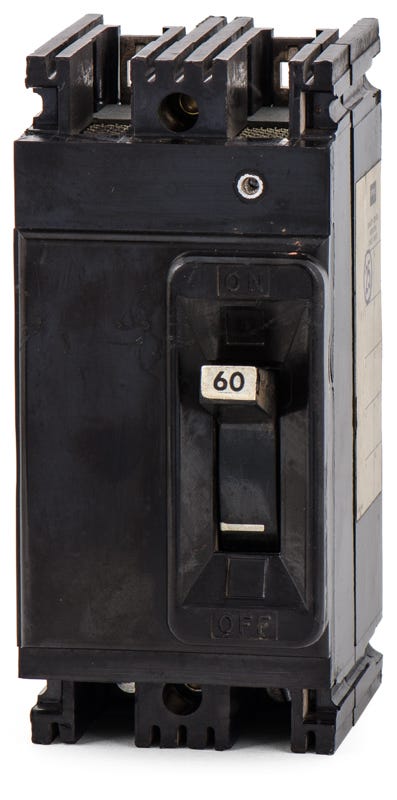

The Federal Pacific NEF421060 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 60 Amps and a voltage rating of 480V. It has an interrupting rating of 14kAIC at 480V. The NEF421060 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NEF |
| Amperage | 60 |
| Voltage | 480V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 14kAIC at 480V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | NEF421060-R |
