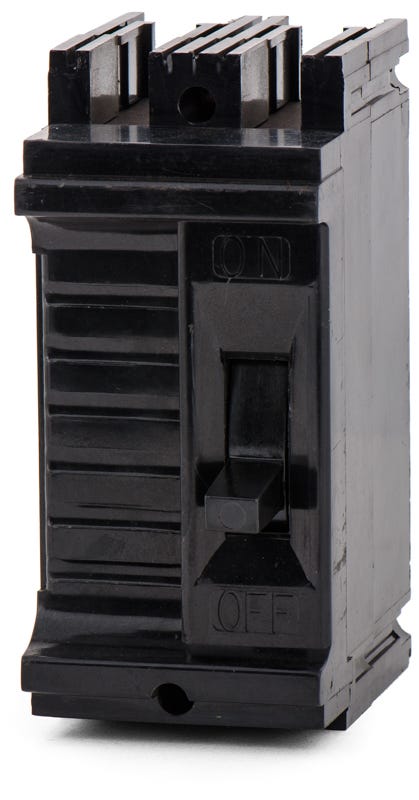

The Federal Pacific NES2200 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 100 Amps and a voltage rating of 240V. It has an interrupting rating of 18kAIC at 240V. The NES2200 has a plug-in connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NES |
| Amperage | 100 |
| Voltage | 240V |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Plug-On |
| Contactor Type | Magnetic |
| Interrupting Rating | 18kAIC at 240V |
| Frame Type | NES |
| Connection Type | Plug-In |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | NES2200-R |
