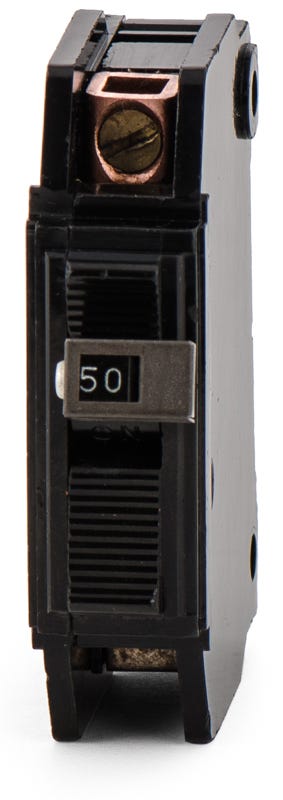

The Federal Pacific NQ111050 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 50 Amps and a voltage rating of 120V. It has an interrupting rating of 10kAIC at 120V. The NQ111050 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Federal Pacific |
|---|---|
| Series | NQ |
| Amperage | 50 |
| Voltage | 120V |
| Poles | 1 |
| Phase | 1 |
| Contactor Type | Magnetic |
| Interrupting Rating | 10kAIC at 120V |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Mpn | NQ111050-R |
