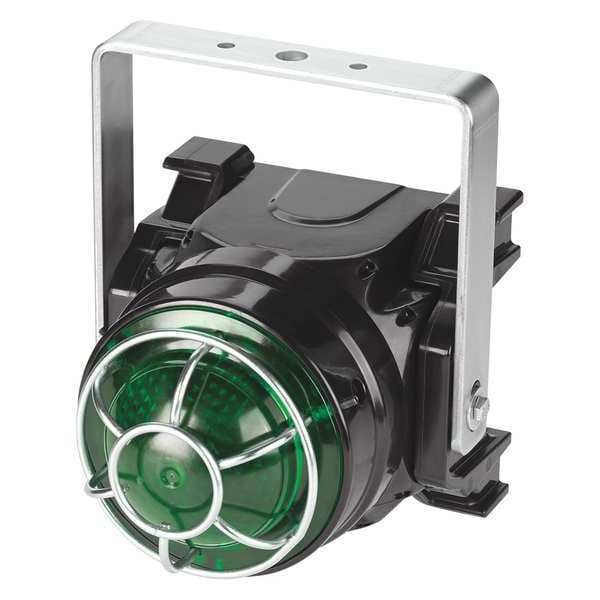

Beacon Warning Light, Green, LED, 0.30A
| Item | Warning Light |
|---|---|
| Color | Green |
| Lamp Type | LED |
| Power Source | Wire |
| Lamp Life | 50,000 hr |
| Lens Material | Polycarbonate |
| Flashes per Minute | 60, 75, 90 |
| Height | 7-1/2 in |
| Housing Material | Glass Reinforced Polyester |
| Standards | ABS, ATEX, CE, CSFM Approved, cUL Listed, cULus Listed, GOST, IECEx, INMETRO, UKCA, UL Listed |
| Features | Supervisory Diode |
| Depth | 8-31/64 in |
| Rating | IP66 |
| Includes | Dome Guard |
| Current Drawn | 0.30A DC |
| Light Output | 400 Lumens |
| Mounting | U-Bracket |
| Width | 8-31/64 in |
| Operating Temp. | -58 to 158 deg F |
| Lens Design | Fresnel |
| Product Type | Warning Light |
| NEMA Rating | NEMA 4X |
| Connection Type | TermiN/Al Block |
| Requires Base | Base Not Required |
| Footprint Length | 5-1/4 in |
| Light Source | LED |
| Footprint Width | 5-1/4 in |
| For Hazardous Location | Class I, Division 2, Class II, Division 2 |
| Operating Current | 0.300 A @ 24V DC |
| Overall Length | 5-7/32 in |
| Lifespan | 50,000 hr |
| Lamp Color | Not Applicable |
| Footprint Shape | Square |
| Overall Depth | 7-1/2 in |
| Overall Diameter | Not Applicable |
| Lens Shape | Dome |
| Light Operating Mode | Flashing, Strobe, Rotating |
| Operating Temperature - Minimum | -67 deg F |
| Control Protocol | User Operated |
| Light Intensity | 175 cd |
| IP Rating | IP69K, IP66 |
| Lens Color | Green |
| Brightness Selection | Fixed Brightness |
| Includes Batteries | Not Applicable |
| Battery Size | Not Applicable |
| Operating Temperature - Maximum | 158 deg F |
| Mounting Mechanism | Bracket |
| Footprint Diameter | Not Applicable |
| Mounting Style | Surface Mount |
| For Location | Not Applicable |
| Overall Width | 5-7/32 in |
| Number of Batteries | Not Applicable |
| Includes Mounting Hardware | Mounting Hardware Included |
| Housing Color | Black |
| Runtime | Not Applicable |
| IO-Link Compatibility | Not Applicable |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
