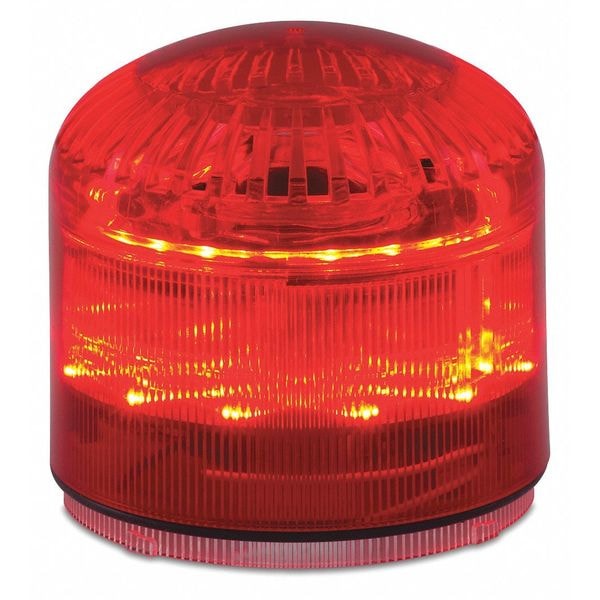

Beacon Warning Sounder Light, Red, LED
| Item | Beacon Warning Sounder Light |
|---|---|
| Color | Red |
| Power Source | Wire |
| Height | 3-7/16 in |
| Width | 3-29/32 in |
| Lamp Type | LED |
| Flashes per Minute | 85 |
| Standards | CE, cUL Listed, UL Listed |
| Includes | Visual Signal + Tone 1 Channel, Visual Signal + Tone 2 Channel, Visual Signal Only Channel |
| Weight | 1.19 lb |
| Diameter | 3 29/32 in |
| Mounting | Deep, Dual, Pipe, Shallow, Twin |
| Voltage | 12 to 24V AC/DC or 120 to 240V AC |
| Operating Temp. | -22 Degrees to 122 Degrees F |
| Current Drawn | 60 to 460mA AC/DC |
| Housing Material | Polycarbonate |
| Lens Design | Fresnel |
| Rating | IP65, NEMA 3R |
| Lens Material | Polycarbonate |
| Depth | 3 29/32 in |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Light Output | Varies |
| Lamp Life | 50,000 hr |
| Features | Not Applicable |
| Overall Width | 3-29/32 in |
| Overall Length | 3-7/16 in |
| Body Material | Polycarbonate |
| Lens Diameter | 3-29/32 in |
| Housing Color | Gray, Red |
| Operating Temperature - Maximum | 131 Degrees F |
| Alarm Volume @ 1 m - Minimum | 99 dBA |
| Operating Temperature - Minimum | -40 Degrees F |
| Battery Size | Not Applicable |
| Lens Shape | Dome |
| Brightness Selection | Selectable Brightness |
| Lens Color | Red |
| Mounting Style | Surface Mount |
| Light Source | LED |
| Control Protocol | Direct Wire |
| Alarm Volume @ 10 ft - Minimum | 89 dBA |
| Alarm Volume @ 1 m - Maximum | 115 dBA |
| NEMA Rating | NEMA 3R |
| Number of Lamps | 5 |
| Light Operating Mode | Steady, Strobe |
| Sound Style | Tone |
| Legend | Not Applicable |
| Alarm Volume @ 10 ft - Maximum | 105 dBA |
| Connection Type | NPN/PNP |
| Operating Current | 200 A @ 240V AC, 300 A @ 120V AC, 300 A @ 24V DC, 400 A @ 12V DC, 700 A @ 24V AC, 780 A @ 12V AC |
| Volume Selection | Selectable Volume |
| Includes Batteries | Not Applicable |
| Overall Depth | 3 29/32 in |
| IP Rating | IP65 |
| Lifespan | 100,000 hr |
| Number of Batteries | Not Applicable |
| Overall Diameter | 3 29/32 in |
| For Hazardous Location | Not Applicable |
| Country of Origin (subject to change) | Italy |
| Package Quantity | 1 |
