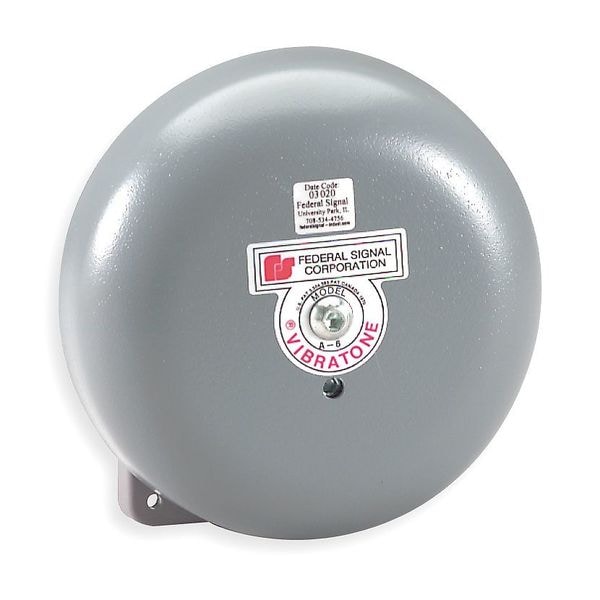

Bell, 120VAC, 0.08 AC, Gray
| Item | Bell |
|---|---|
| Housing Material | Industrial Grade, Powder-Coat Paint |
| Mounting | Outlet Box |
| Amps | 0.08 AC |
| Color | Grey |
| Audible Alarm Type | Bell |
| Voltage | 120V AC |
| Standards | CSA Certified, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 100 dB |
| Sound Pattern | Continuous |
| Width | 6 in |
| Height | 6 in |
| Vibrating | Yes |
| Operating Temp. | -31 Degrees to 150 Degrees F |
| Depth | 2-5/8 in |
| Visual Indicator Type | No Visual Indicator |
| Power Source | Wire |
| Features | Vibratone Gongs are Tempered to Produce Superior Output and Long-Lasting Durability |
| Overall Depth | 5-1/16 in |
| Product Type | Bell |
| Wattage | Not Applicable |
| Rating | NEMA 3R |
| Alarm Volume @ 10 ft - Maximum | 100 dBA |
| Control Protocol | Direct Wire |
| Legend | Non applicable |
| For Location | Indoor, Outdoor |
| Overall Width | 5-5/8 in |
| Connection Type | Not Applicable |
| Mounting Style | Not Applicable |
| IP Rating | NEMA 3R |
| Sound Principle | Vibrating |
| Volume Selection | Fixed Volume |
| Vibration | Vibrating |
| Alarm Volume @ 1 m - Minimum | Not Applicable |
| Sound Continuity | Continuous |
| Operating Temperature - Minimum | -31 deg F |
| Alarm Volume @ 1 m - Maximum | 110 dBA |
| Operating Temperature - Maximum | 150 deg F |
| Alarm Volume @ 10 ft - Minimum | Not Applicable |
| Number of Sound Patterns | Not Applicable |
| Sound Style | Bell |
| Operating Current | 0.080 A |
| Overall Length | 6 in |
| Overall Diameter | 5-3/8 in |
| NEMA Rating | NEMA 3R |
| For Hazardous Location | Not Applicable |
| Includes Mounting Hardware | Not Applicable |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
