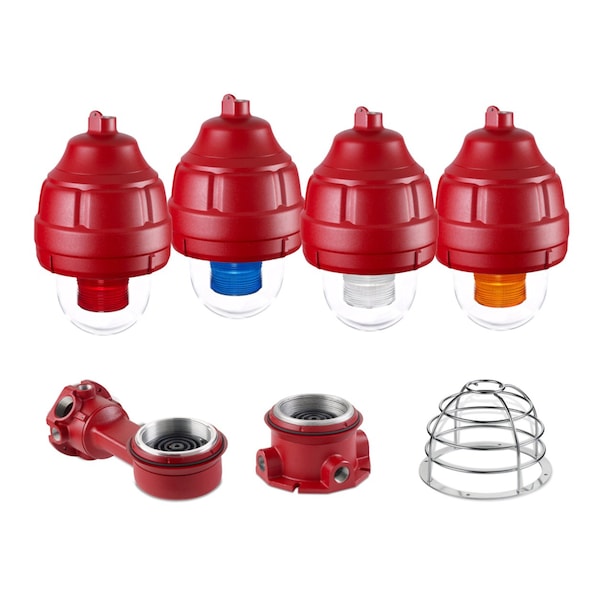

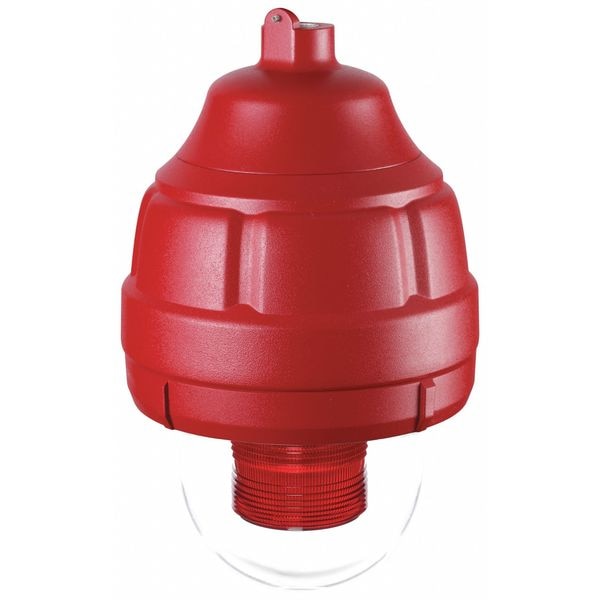

Explosion-Proof Light, Red, Strobe Tube
| Item | Strobe Light |
|---|---|
| Color | Red |
| Lamp Type | Strobe Tube |
| Power Source | Wire |
| Lamp Life | 10,000 hr |
| Lens Material | Glass |
| Flashes per Minute | 80 |
| Height | 11-3/8 in |
| Housing Material | Aluminum |
| Standards | CSFM Approved, cUL Listed, cULus Listed, Marine Rated, UL Listed |
| Diameter | 8-53/64 in |
| Features | Compatible with Multiple Systems, Conformal Coated PCBA, Synchronize with SSM Module |
| Lens Design | Fresnel |
| Voltage | 24V DC |
| Operating Temp. | -67 to 150 deg F |
| Rating | IP66, Marine, NEMA 4X |
| Mounting | Surface |
| Green Environmental Attribute | Does Not Contain Methylene Chloride |
| Width | 8-53/64 in |
| Light Output | 2,000,000 Candela |
| Current Drawn | 1.9A DC |
| Depth | 8-53/64 in |
| For Use With | Oil Rig, Mine, Refinery, Security, Chemical Plant |
| Product Type | Strobe Light |
| Connection Type | Not Applicable |
| Audible Alarm Type | Visual |
| NEMA Rating | NEMA 4X |
| Lens Color | Red |
| Overall Length | Not Applicable |
| Overall Width | Not Applicable |
| Number of Batteries | Not Applicable |
| Battery Size | Not Applicable |
| Footprint Width | Not Applicable |
| Footprint Shape | Circle |
| Runtime | Not Applicable |
| Housing Color | Red |
| Lamp Color | Not Applicable |
| Footprint Diameter | Not Applicable |
| Includes Mounting Hardware | No Mounting Hardware |
| Light Source | Not Applicable |
| Control Protocol | Direct Wire |
| Mounting Style | Surface Mount |
| Lifespan | 10,000 hr |
| Operating Temperature - Minimum | -67 deg F |
| Operating Temperature - Maximum | 150 deg F |
| Light Intensity | 850 cd |
| Requires Base | Base Not Required |
| Overall Diameter | 8-27/32 in |
| Footprint Length | Not Applicable |
| IO-Link Compatibility | Not Applicable |
| For Hazardous Location | Class I, Division 1, Class I, Division 2 |
| Operating Current | 1.900 A @ 24V DC |
| Mounting Mechanism | Not Applicable |
| Brightness Selection | Fixed Brightness |
| Lens Shape | Dome |
| Includes Batteries | Not Applicable |
| IP Rating | IP69K, IP66 |
| Overall Depth | 11-3/8 in |
| Light Operating Mode | Strobe |
| For Location | Not Applicable |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
