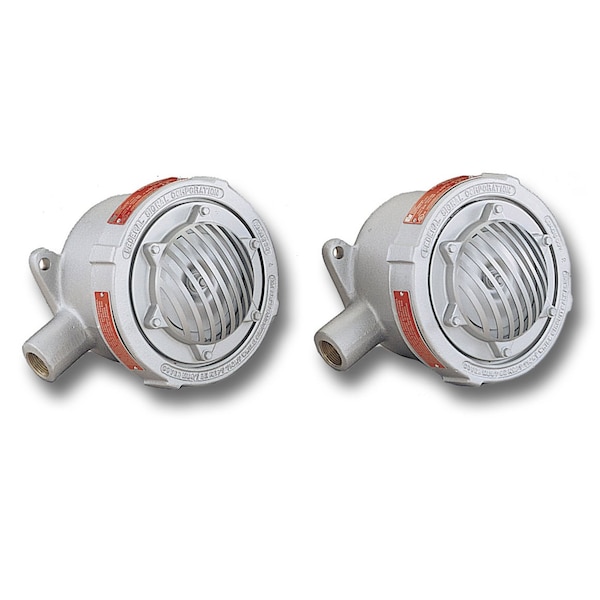

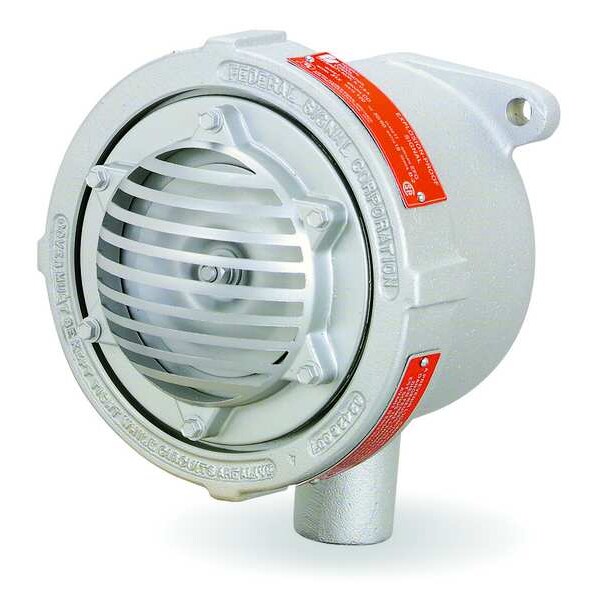

Explosion Proof Vibrating Horn, 120VAC
| Item | Vibrating Horn |
|---|---|
| Housing Material | Aluminum |
| Mounting | Conduit |
| Amps | 0.20 AC |
| Diameter | 6-1/2 in |
| Color | Grey |
| Audible Alarm Type | Horn |
| Voltage | 120V AC |
| Standards | CSA Certified, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor |
| Decibels | 100 dB |
| Sound Pattern | Continuous |
| Hazardous Division | 1 |
| Height | 7-5/8 in |
| Depth | 6-1/2 in |
| Vibrating | Yes |
| Operating Temp. | -35 Degrees to 150 Degrees F |
| Width | 6-1/2 in |
| Visual Indicator Type | No Visual Indicator |
| Hazardous Class | I |
| Power Source | Wire |
| Includes | Stainless Steel Diaphragms |
| Alarm Type | Audible |
| Input Voltage | 120 V AC |
| Features | Corrosion Resistant Vibrating Horns |
| Overall Width | 6-1/2 in |
| Overall Depth | 6-1/2 in |
| Rating | NEMA 4X |
| Product Type | Horn |
| Overall Length | 7-5/8 in |
| Wattage | Not Applicable |
| Material | Aluminum |
| For Location | Indoor |
| Control Protocol | Direct Wire |
| Sound Continuity | Continuous |
| Alarm Volume @ 10 ft - Maximum | 100 dBA |
| Sound Style | Horn |
| Volume Selection | Fixed Volume |
| Number of Sound Patterns | Not Applicable |
| Includes Mounting Hardware | Not Applicable |
| Connection Type | Wire Leads |
| For Hazardous Location | Class I, Division 1, Class II, Division 1 |
| Operating Temperature - Maximum | 104 deg F |
| Overall Diameter | 6-1/2 in |
| NEMA Rating | NEMA 4X |
| Operating Temperature - Minimum | -13 deg F |
| Vibration | Vibrating |
| Alarm Volume @ 10 ft - Minimum | Not Applicable |
| Alarm Volume @ 1 m - Minimum | Not Applicable |
| Mounting Style | Surface Mount |
| IP Rating | NEMA 4X |
| Operating Current | 0.20 A |
| Sound Principle | Vibrating |
| Legend | Non applicable |
| Alarm Volume @ 1 m - Maximum | 110 dBA |
| Operating Voltage | 120V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
