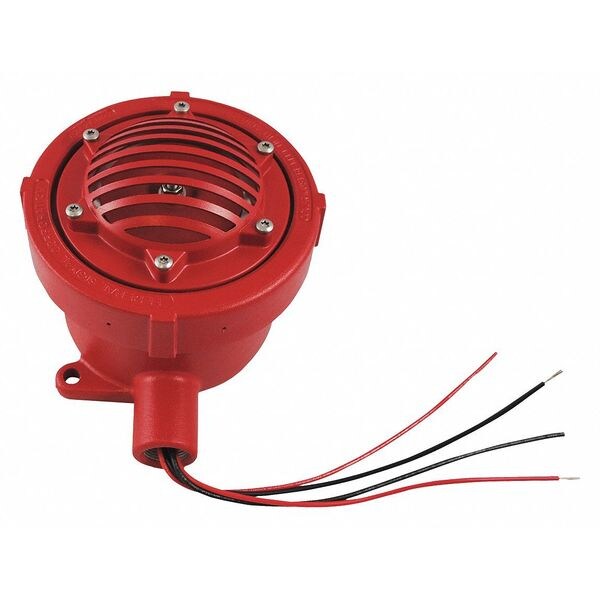

Horn, 99db at 10 ft., 3/4" NPT Pipe Mount
| Item | Vibrating Horn |
|---|---|
| Housing Material | Die Cast Aluminum |
| Mounting | Conduit |
| Amps | 1.2 |
| Color | Red |
| Audible Alarm Type | Horn |
| Voltage | 24V DC |
| Standards | CSFM Compliant, cUL Listed, UL Listed |
| Indoor/Outdoor | Indoor, Outdoor |
| Decibels | 99 dB |
| Features | Supervisory Diode and Four Wires |
| Operating Temp. | -31 Degrees to 150 Degrees F |
| Includes | Horn |
| Housing Color | Red |
| Width | 6-1/2 in |
| Height | 7-5/8 in |
| Depth | 6-1/2 in |
| Current Drawn | 1.2 A |
| Power Source | Wire |
| Alarm Type | Audible |
| Input Voltage | 24 V DC |
| Overall Width | 6-1/2 in |
| Overall Depth | 6-1/2 in |
| Material | Cast Aluminum |
| Rating | NEMA 4X, IP66, UL Listed, cUL Listed for Class I, Division 1 |
| Wattage | Not Applicable |
| Overall Length | 7-5/8 in |
| Product Type | Horn |
| Volume Selection | Not Applicable |
| Overall Diameter | 6-1/2 in |
| Sound Continuity | Not Applicable |
| Alarm Volume @ 1 m - Maximum | 109 dBA |
| For Hazardous Location | Class I, Division 1, Class II, Division 1 |
| Alarm Volume @ 1 m - Minimum | Not Applicable |
| Operating Temperature - Minimum | -31 deg F |
| NEMA Rating | NEMA 4X |
| Alarm Volume @ 10 ft - Maximum | 99 dBA |
| Mounting Style | Not Applicable |
| Number of Sound Patterns | Not Applicable |
| Legend | Non applicable |
| Connection Type | Not Applicable |
| Sound Principle | Vibrating |
| Operating Temperature - Maximum | 150 deg F |
| Vibration | Vibrating |
| Control Protocol | Direct Wire |
| Sound Style | Horn |
| Operating Current | 1.200 A |
| IP Rating | IP66 |
| Alarm Volume @ 10 ft - Minimum | Not Applicable |
| For Location | Indoor, Outdoor |
| Includes Mounting Hardware | Not Applicable |
| Operating Voltage | 24V DC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
